Manufacturing & Quality

Our Production Process

Use the interactive process diagram to select the product route you want to view.

Cast steel shot and steel grit production routeScrap steel and alloying elements enter a shared forming sequence. Size classification then separates the cast steel shot route from the steel grit route, which divides into GH and GL or GP grades.Shared forming process
Scrap steelPrimary feedstock
Alloying elementsComposition control
Induction meltingMedium-frequency furnace
Centrifugal atomizationMolten metal → spherical shot
Drying
Coarse screening
Roundness separationShape sorting
Size classificationScreening by particle size
Cast steel shot
Secondary quenchingHardening heat treatment
Tempering
Fine screening
Packaging
Cast steel shotSpherical abrasive
Steel grit preparation
Crushing
Coarse screening
GH steel grit
Fine screening
Packaging
GH steel gritHigh-hardness grade
GL / GP steel grit
Tempering
Fine screening
Packaging
GL / GP steel gritTempered grades

Shared forming process

  1. Scrap steelPrimary feedstock
  2. Alloying elementsComposition control
  3. Induction meltingMedium-frequency furnace
  4. Centrifugal atomizationMolten metal → spherical shot
  5. Drying
  6. Coarse screening
  7. Roundness separationShape sorting
  8. Size classificationScreening by particle size

Cast steel shot

  1. Secondary quenchingHardening heat treatment
  2. Tempering
  3. Fine screening
  4. Packaging
  5. Cast steel shotSpherical abrasive

Steel grit preparation

  1. Crushing
  2. Coarse screening

GH steel grit

  1. Fine screening
  2. Packaging
  3. GH steel gritHigh-hardness grade

GL / GP steel grit

  1. Tempering
  2. Fine screening
  3. Packaging
  4. GL / GP steel gritTempered grades

Explore the Production Site by Chapter

Process chapters

01 / 10

Raw materials & preparation

  1. 01Raw materials & preparation
  2. 02Material handling & charging
  3. 03Electric furnace melting
  4. 04Molten steel transfer & centrifugal granulation
  5. 05Cooling & drying
  6. 06Primary screening
  7. 07Quenching
  8. 08Steel shot crushing — steel grit production
  9. 09Final screening & packaging
  10. 10Dust collection & auxiliary systems
Overall page progress0%
01

Raw materials & preparation

This category shows baled and bulk metal feedstock together with bagged materials in the preparation area.

4 site photographs

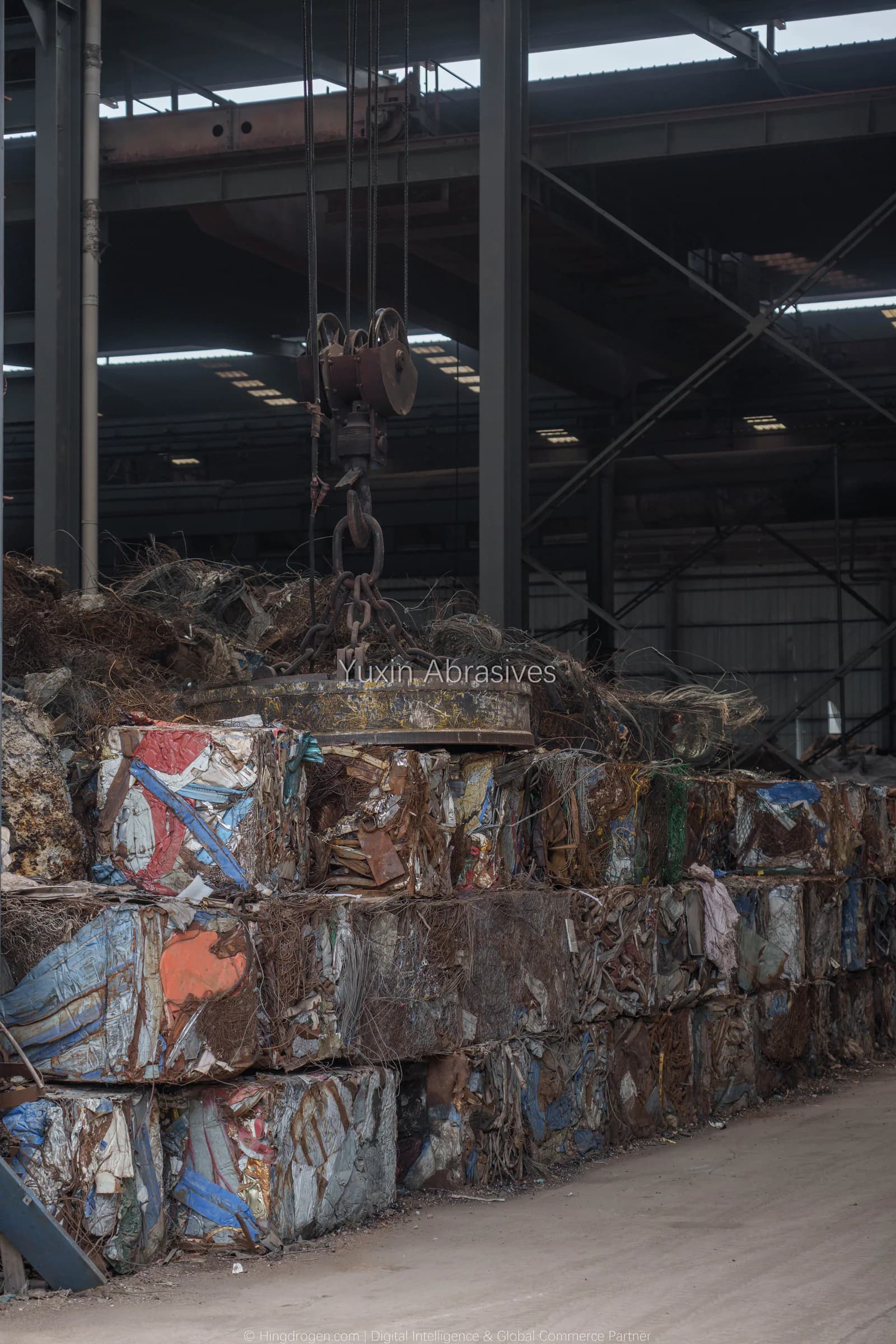

YUXIN production photograph: Raw materials & preparation, record _DSC9088

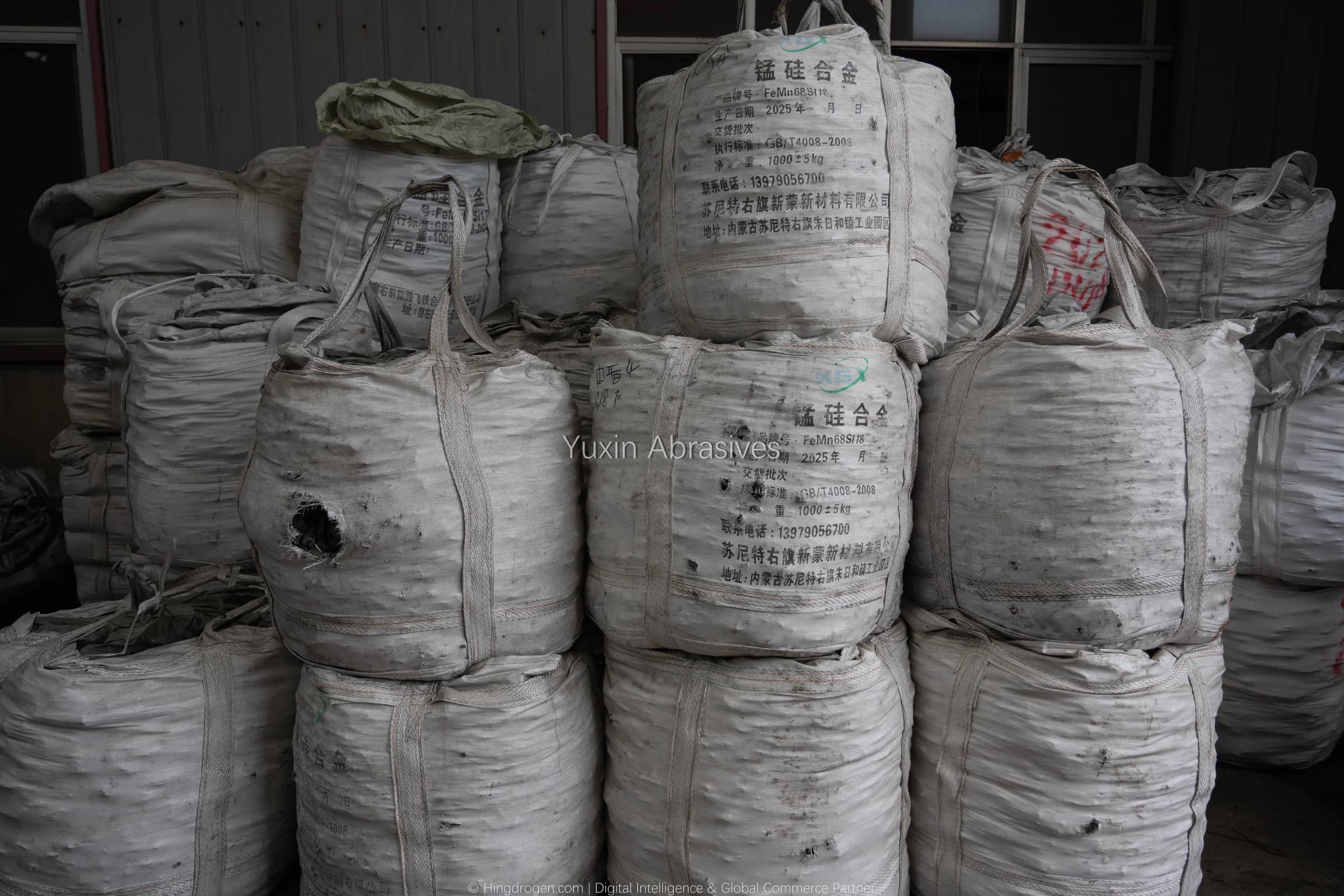

YUXIN production photograph: Raw materials & preparation, record _DSC9091

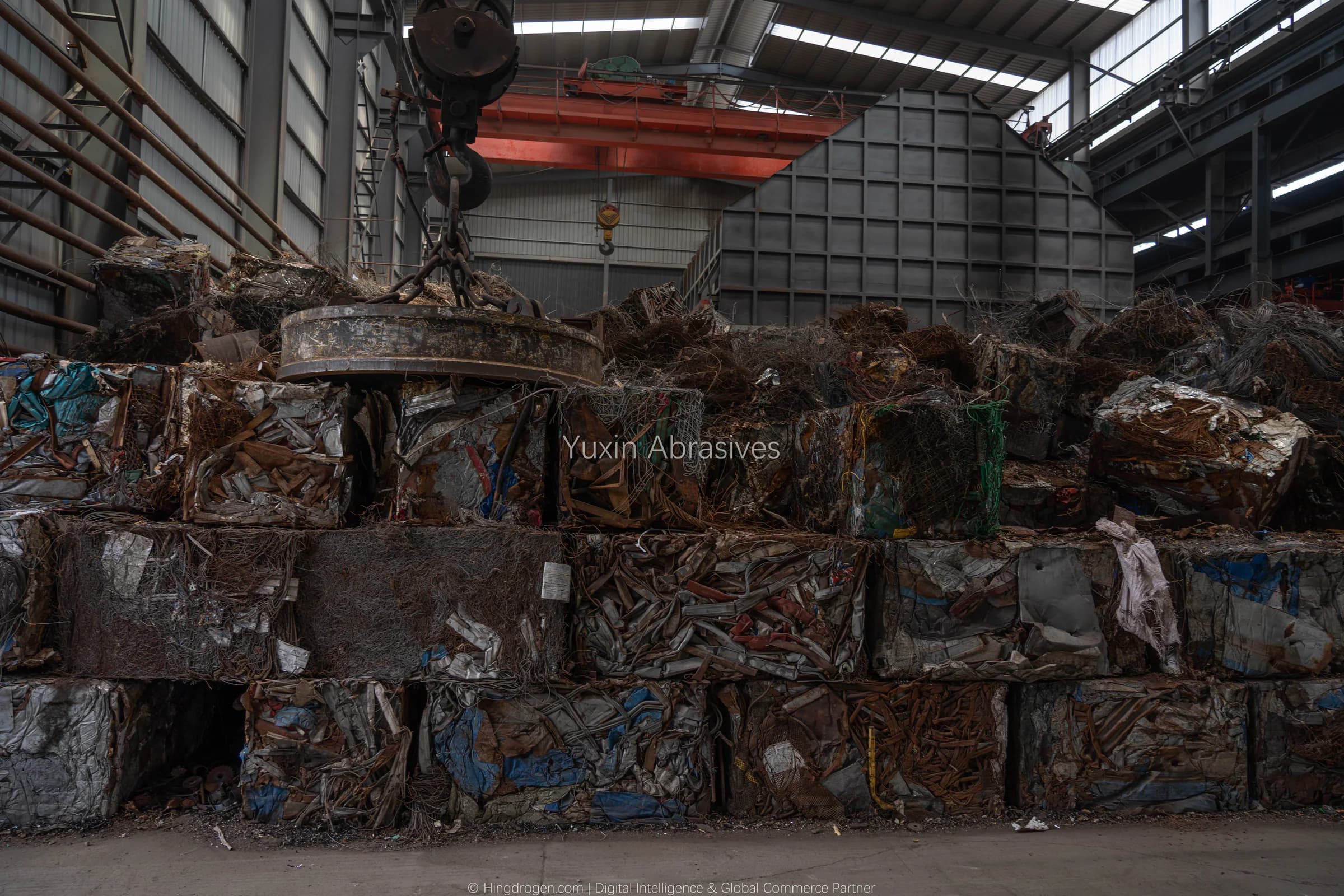

YUXIN production photograph: Raw materials & preparation, record _DSC9092

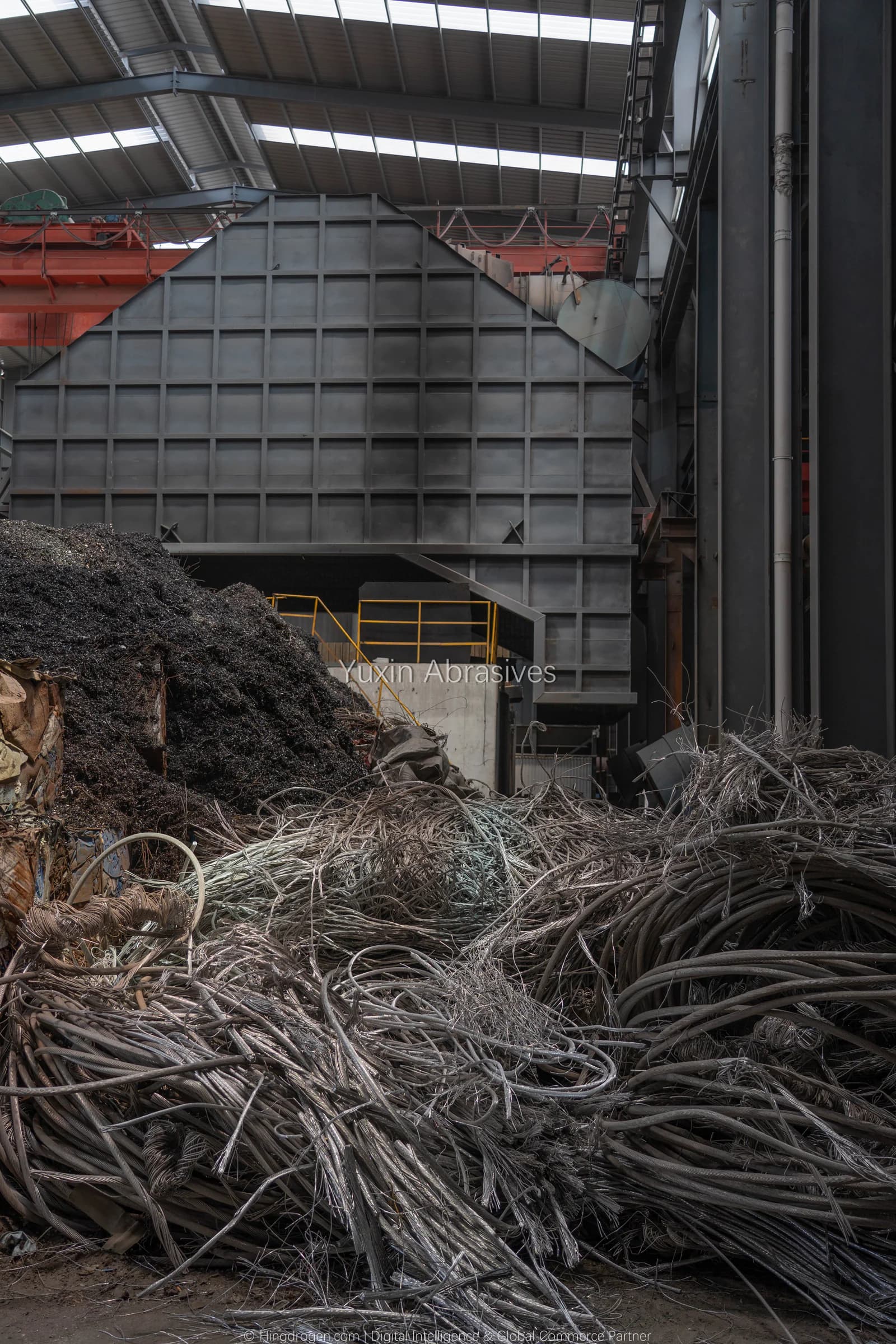

YUXIN production photograph: Raw materials & preparation, record _DSC9093
02

Material handling & charging

This record covers material-handling equipment, furnace-side transfer points and visible charging operations.

8 site photographs

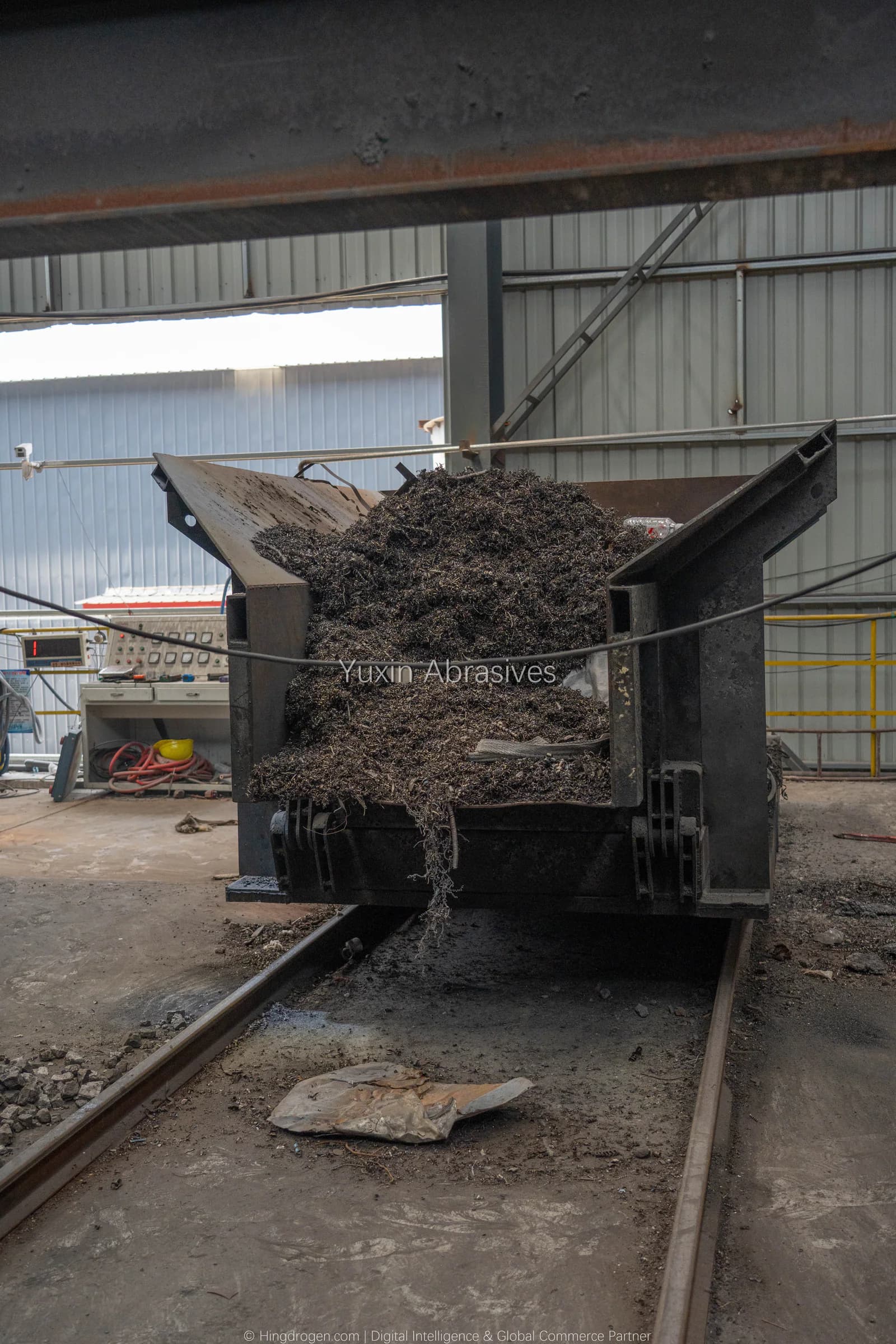

YUXIN production photograph: Material handling & charging, record _DSC9121

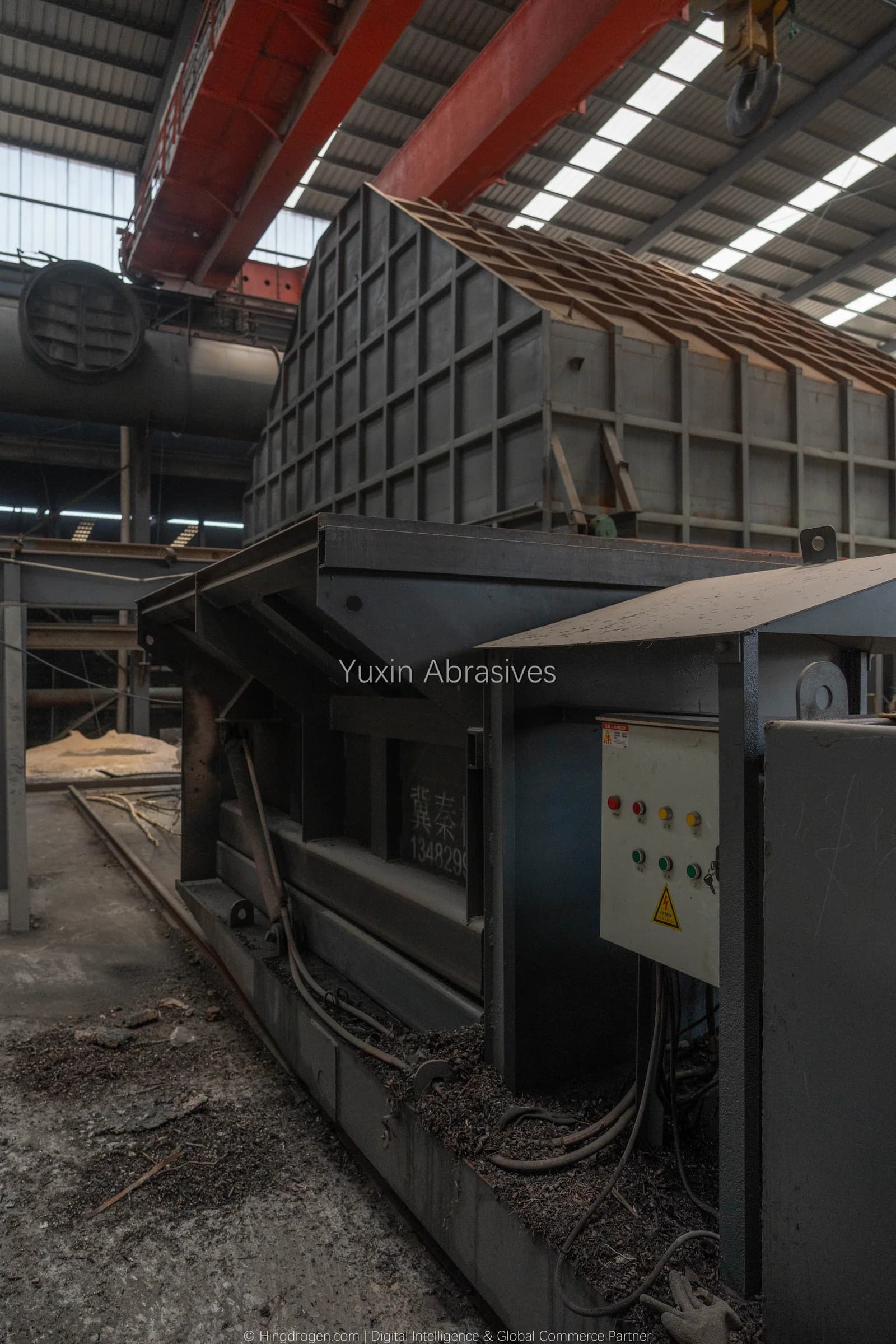

YUXIN production photograph: Material handling & charging, record _DSC9122

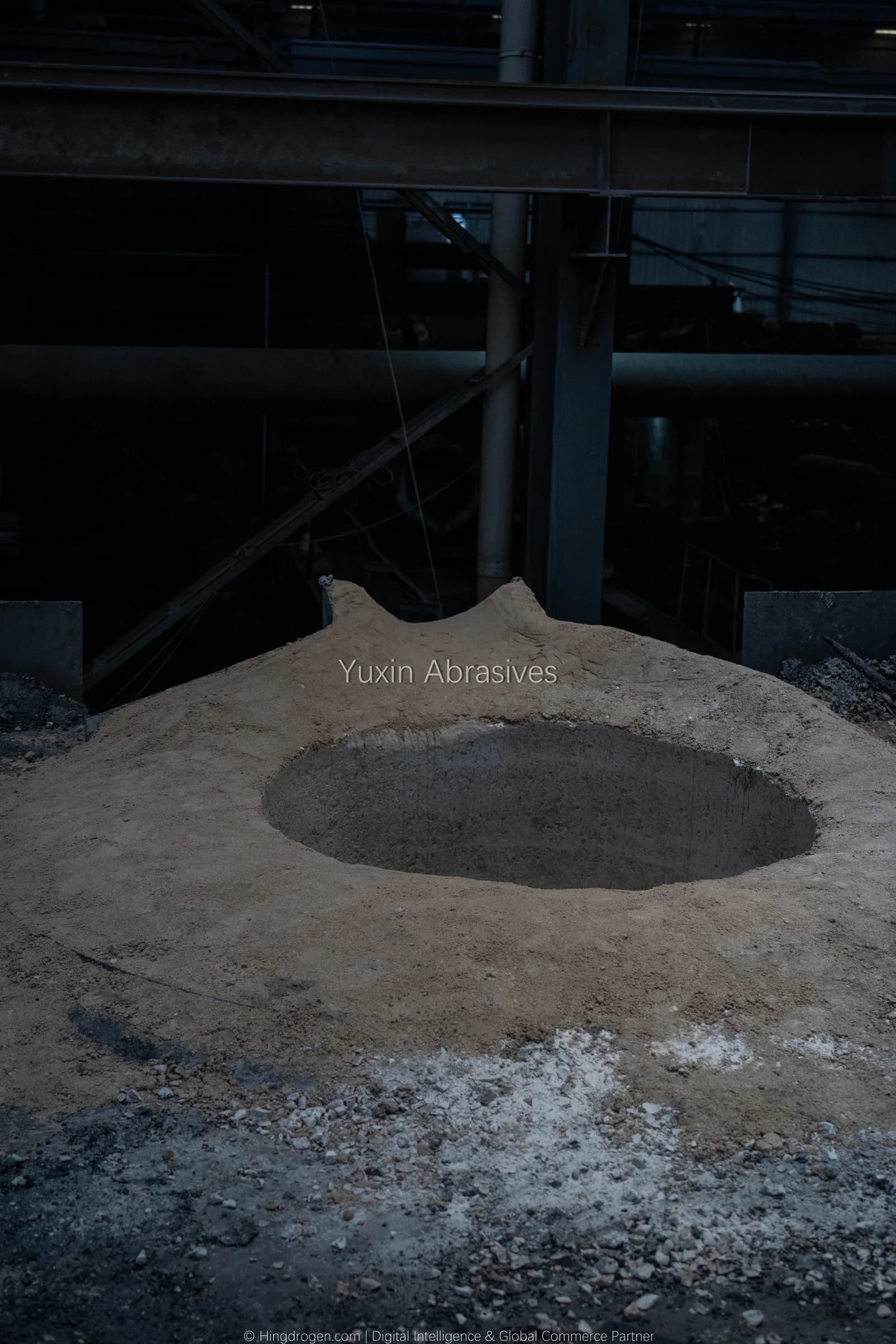

YUXIN production photograph: Material handling & charging, record _DSC9123

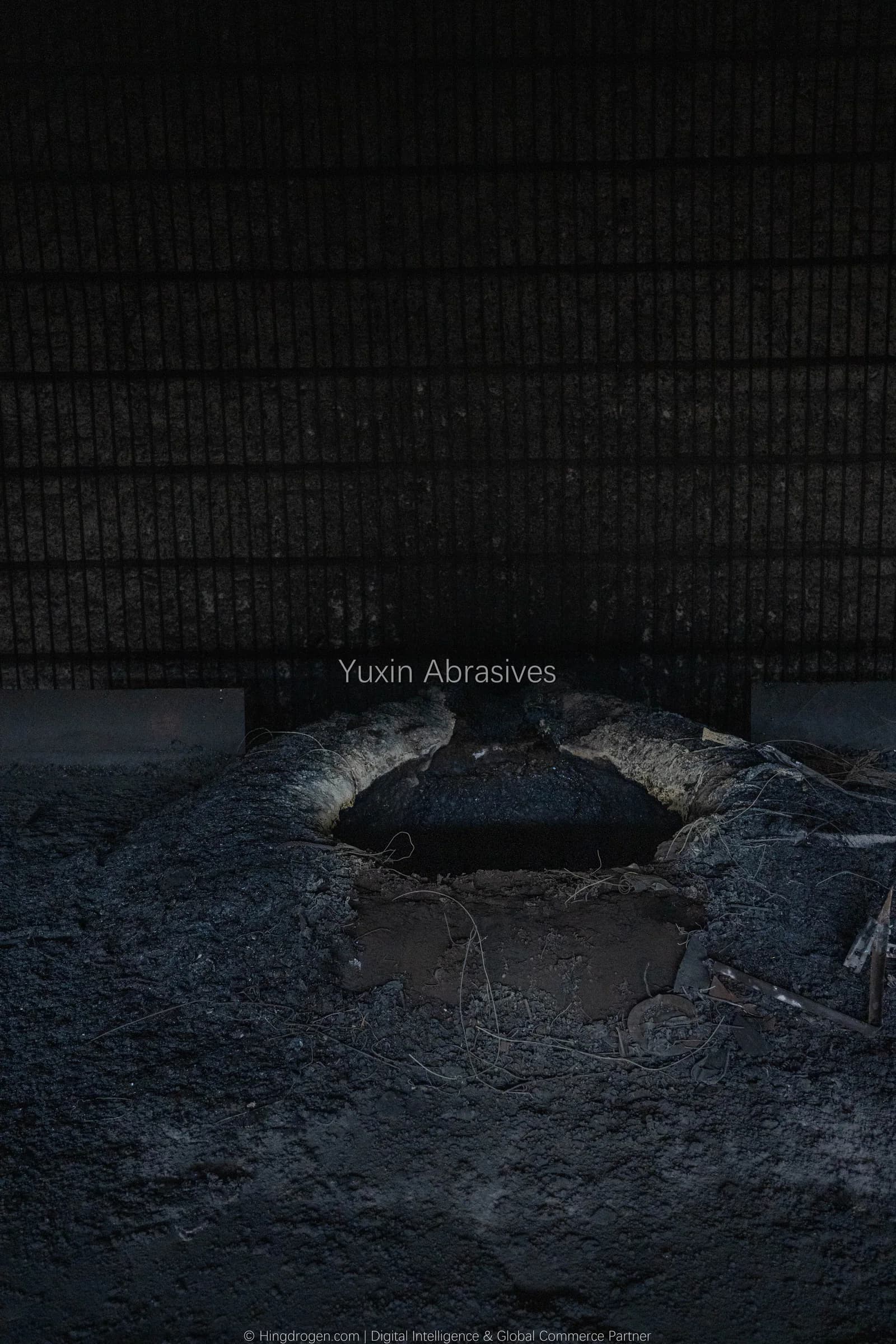

YUXIN production photograph: Material handling & charging, record _DSC9124
YUXIN production photograph: Material handling & charging, record _DSC9126

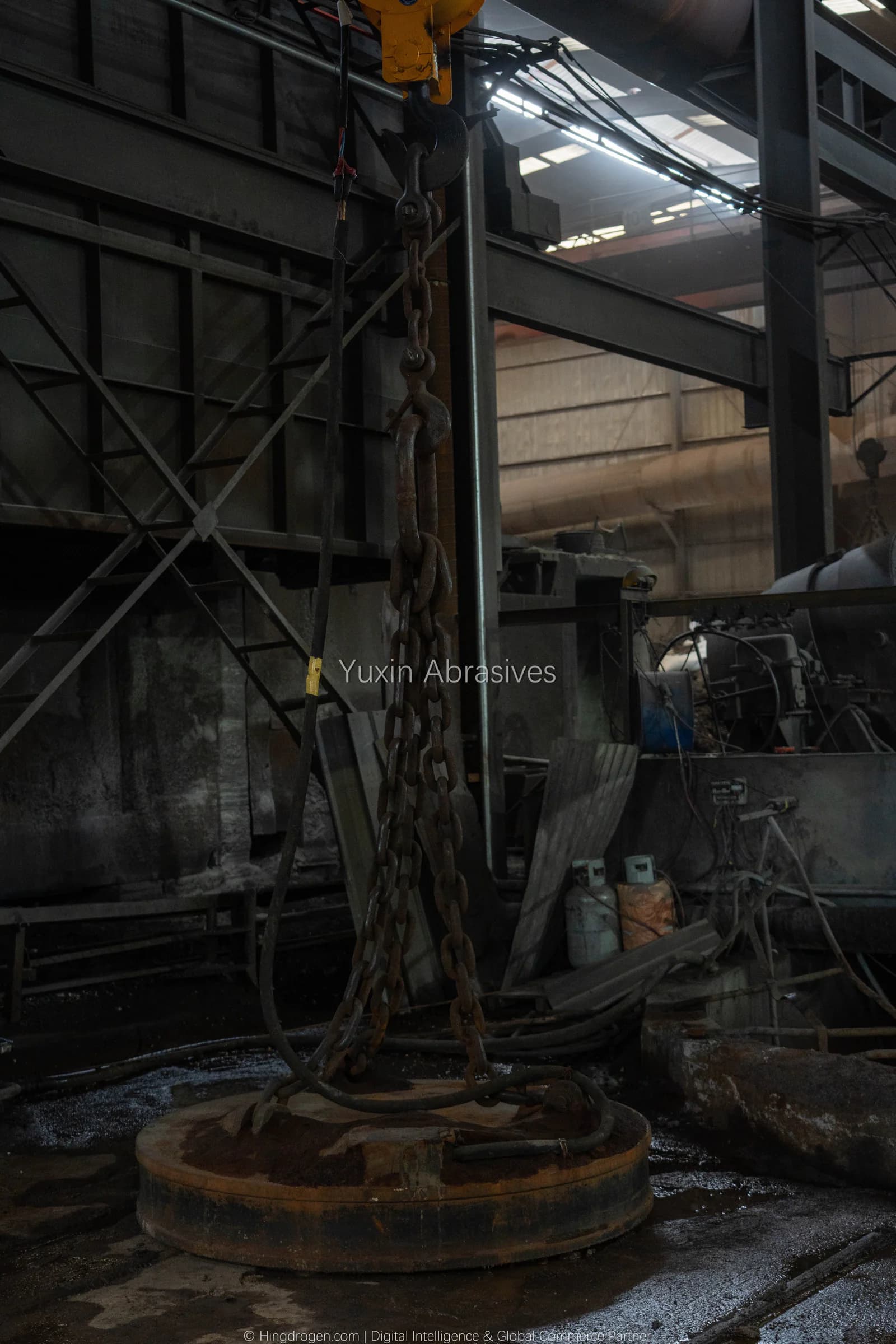

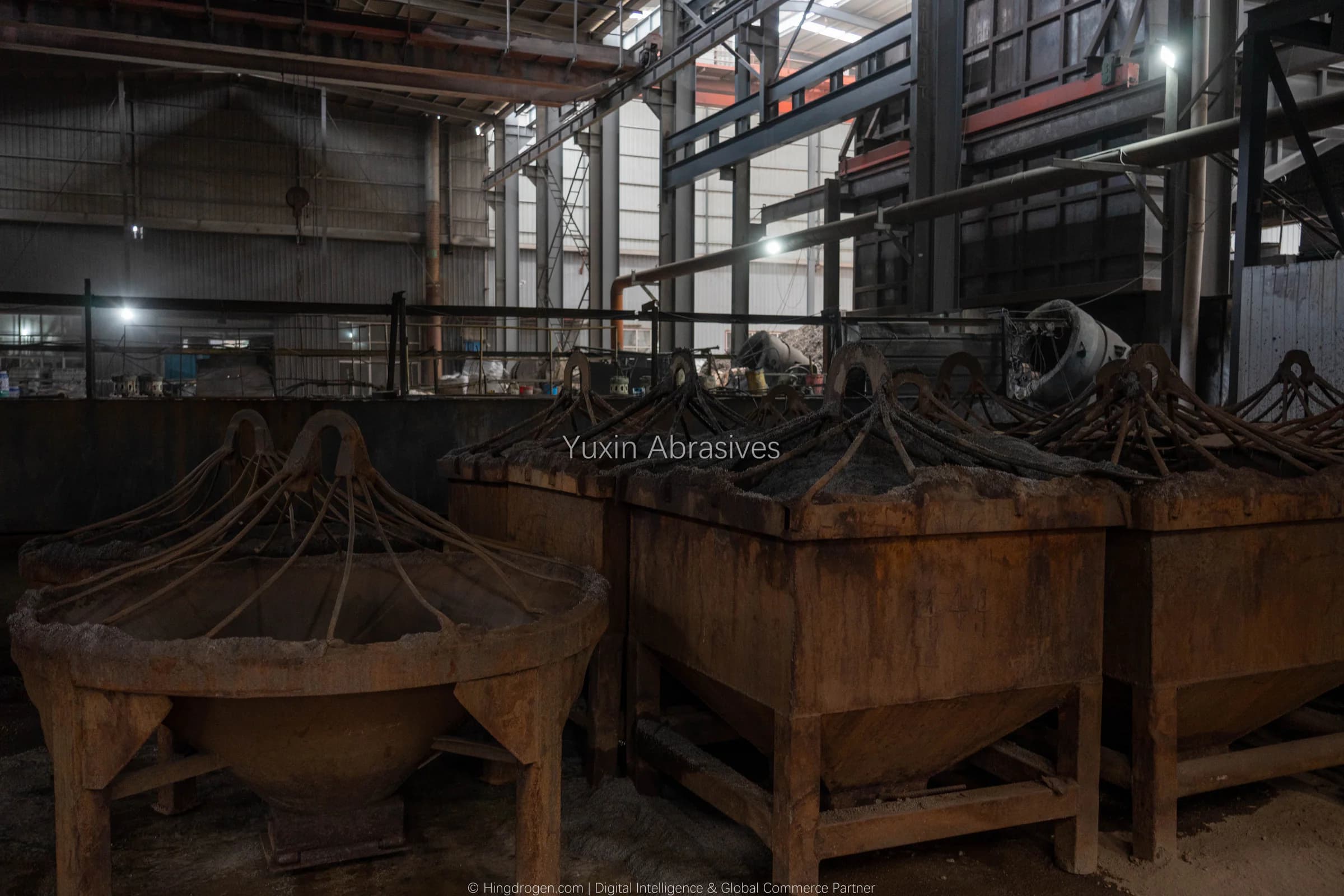

YUXIN production photograph: Material handling & charging, record _DSC9127

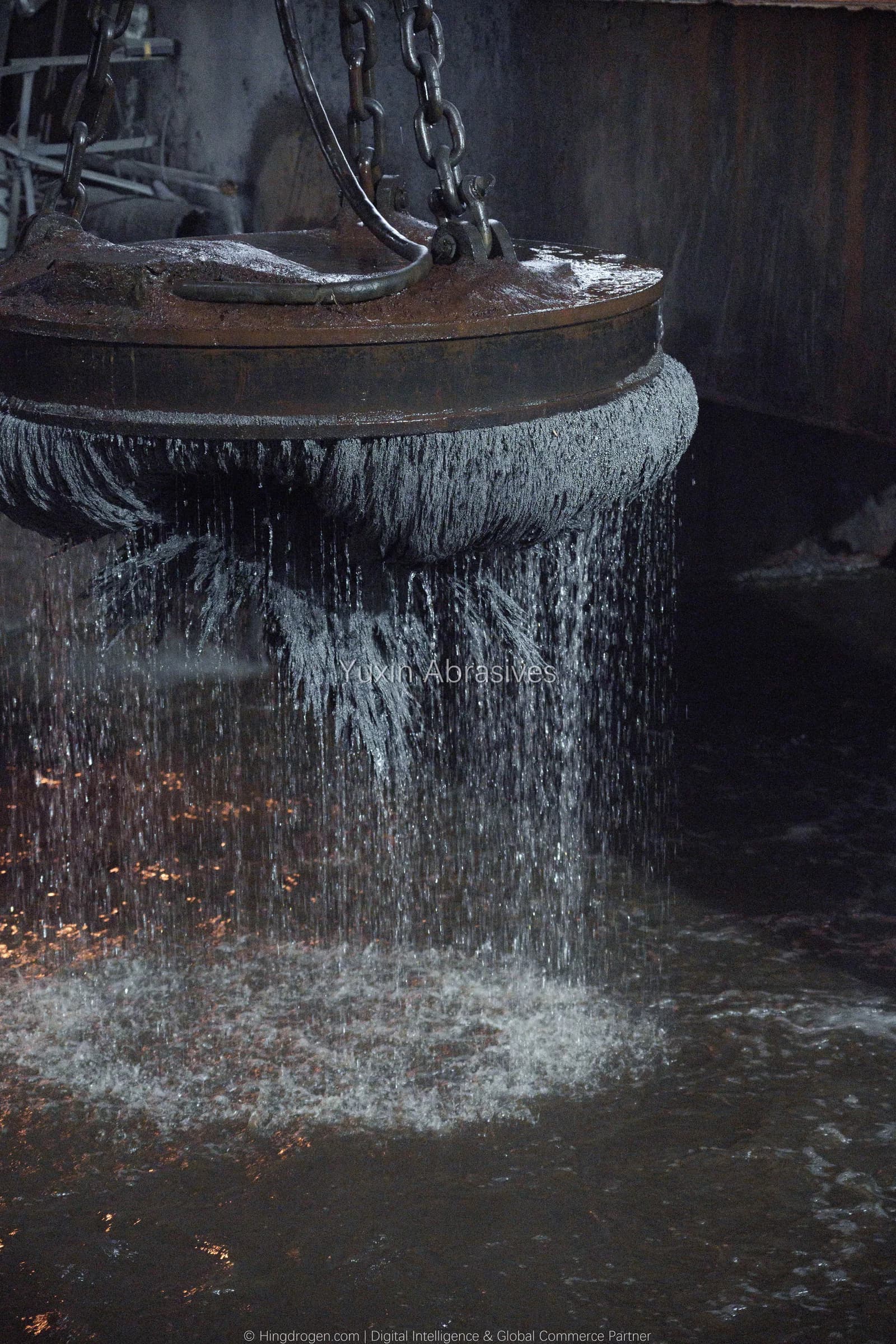

YUXIN production photograph: Material handling & charging, record _DSC9222

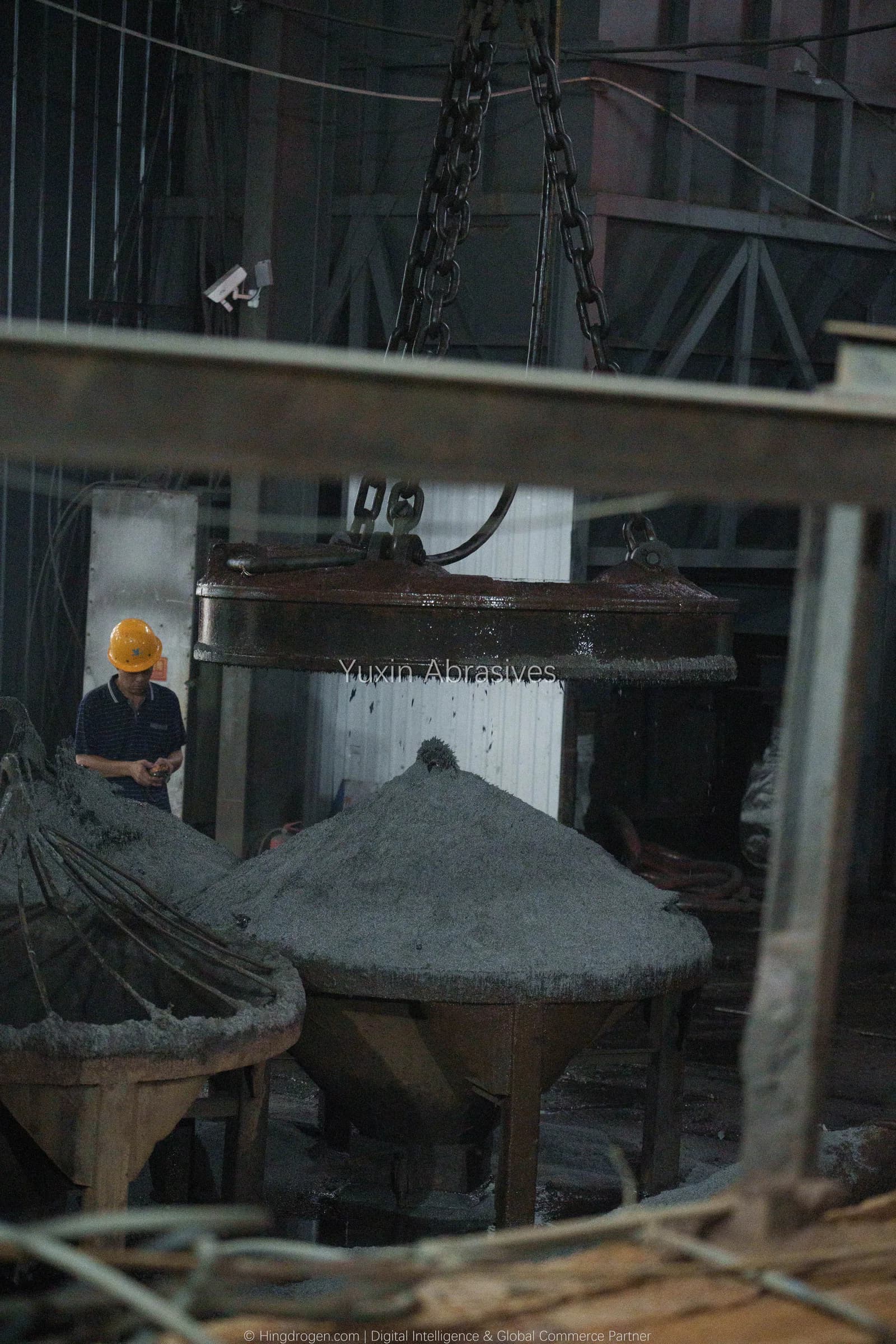

YUXIN production photograph: Material handling & charging, record _DSC9225
03

Electric furnace melting

Electrical control cabinets, furnace-side systems and active melting scenes appear in this client-classified stage. Operating settings are not inferred from photography.

7 site photographs

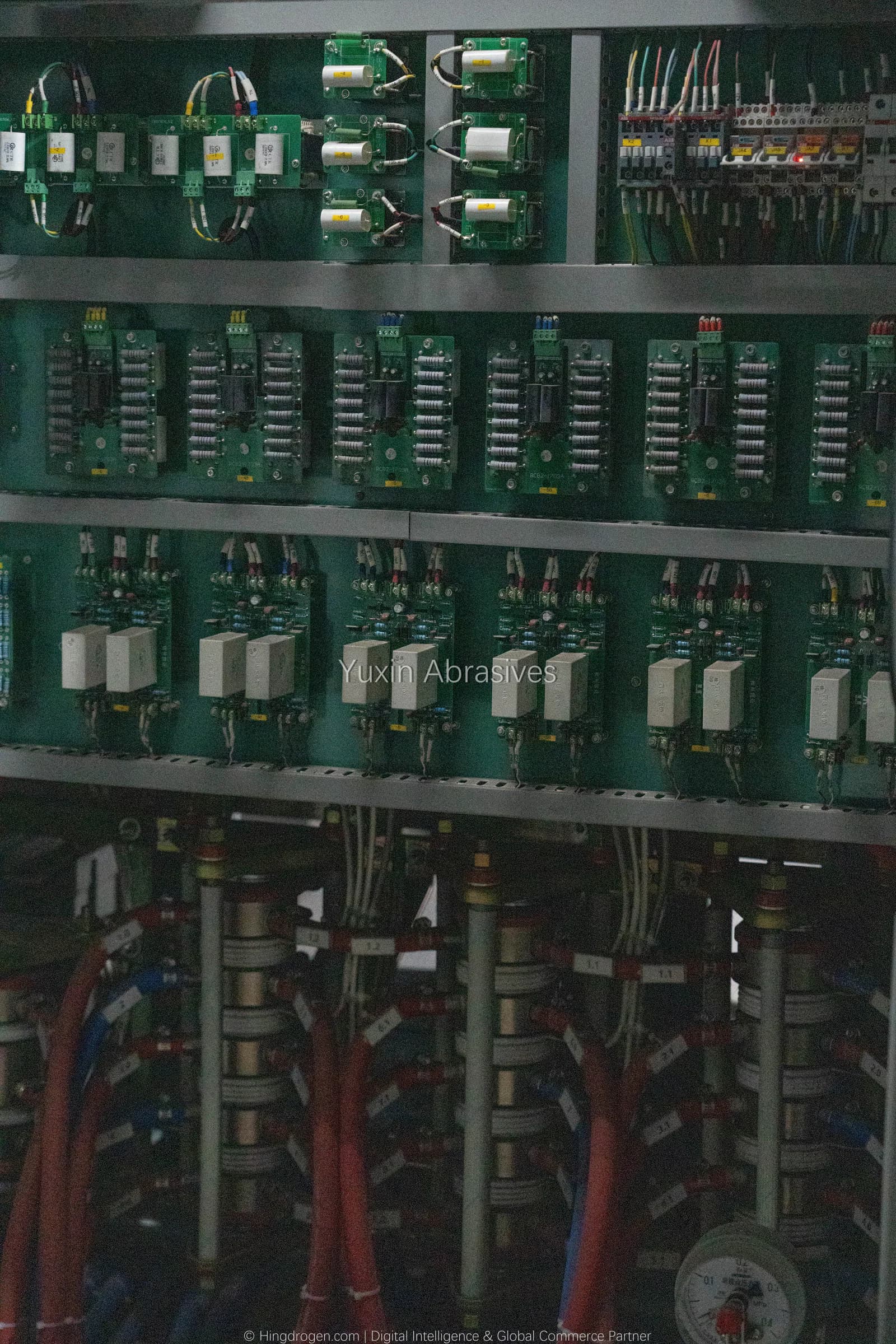

YUXIN production photograph: Electric furnace melting, record _DSC9107

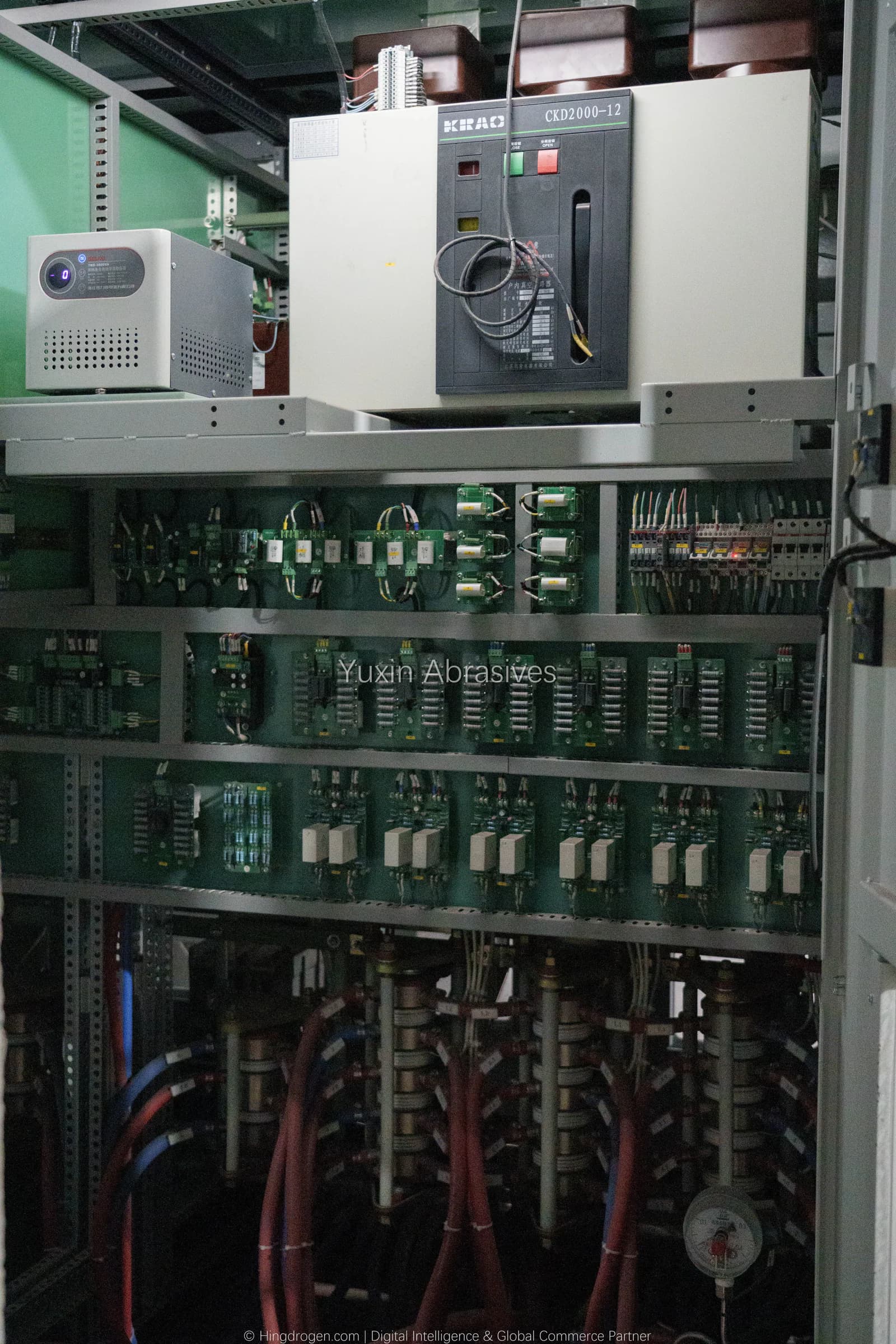

YUXIN production photograph: Electric furnace melting, record _DSC9108

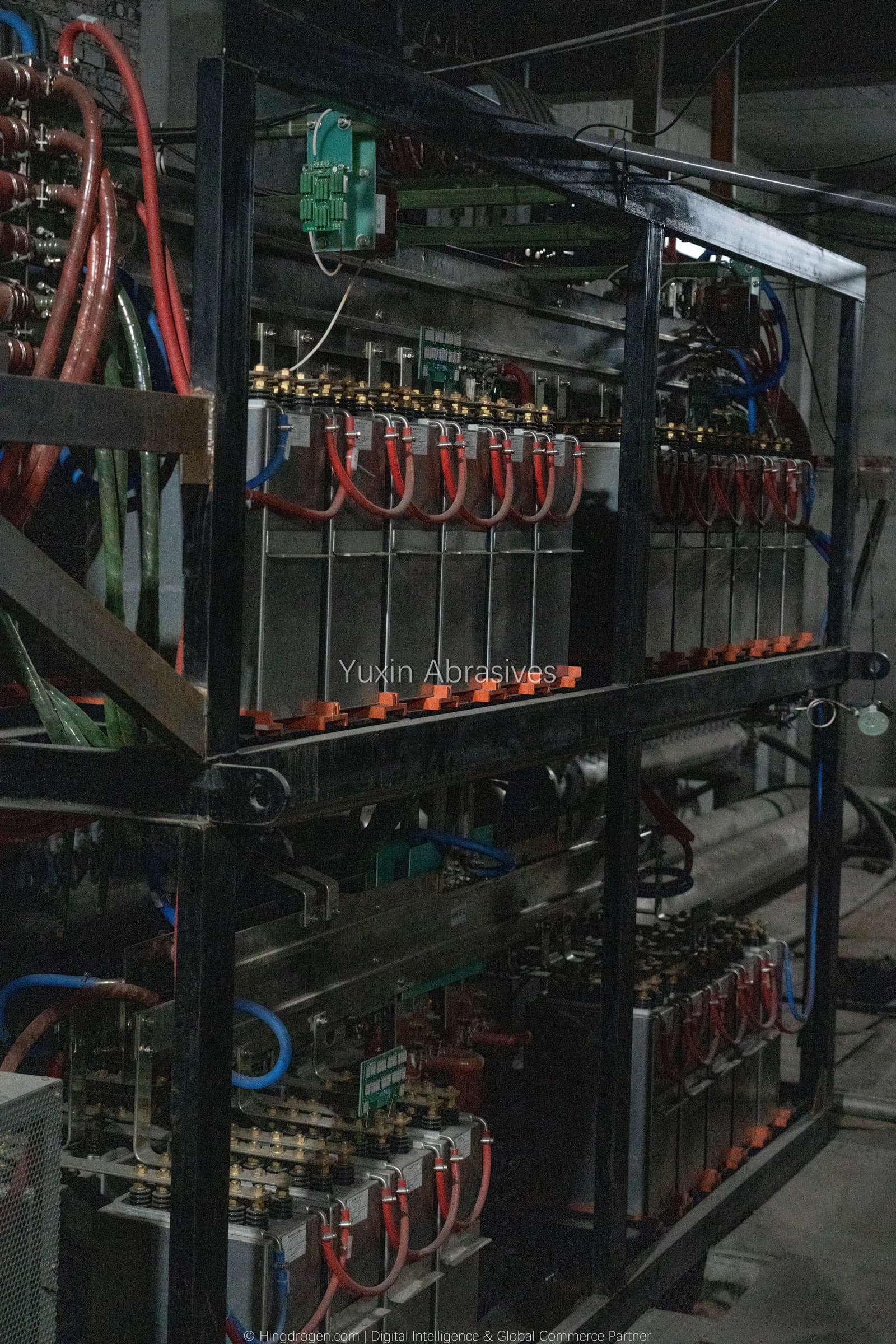

YUXIN production photograph: Electric furnace melting, record _DSC9110

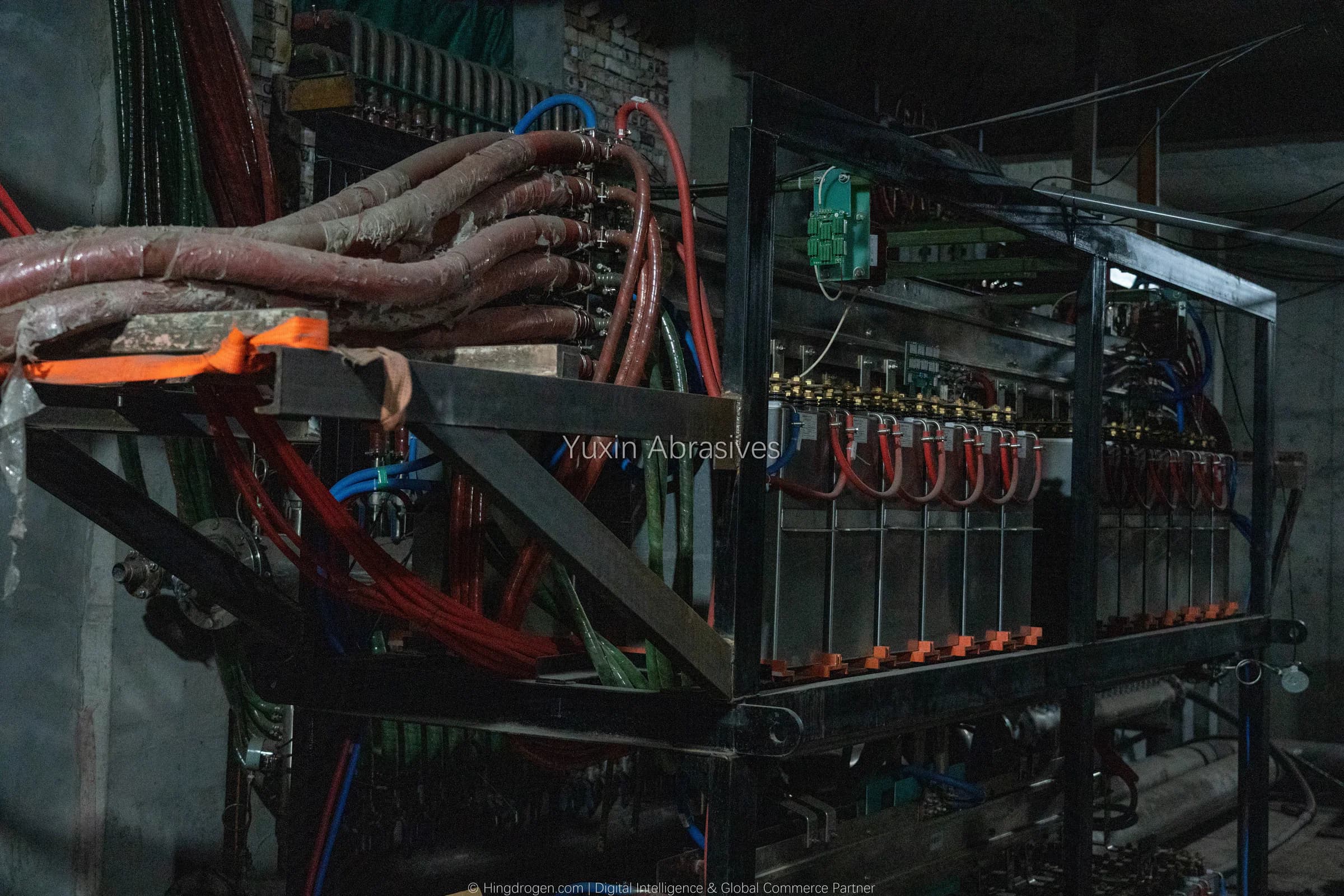

YUXIN production photograph: Electric furnace melting, record _DSC9111

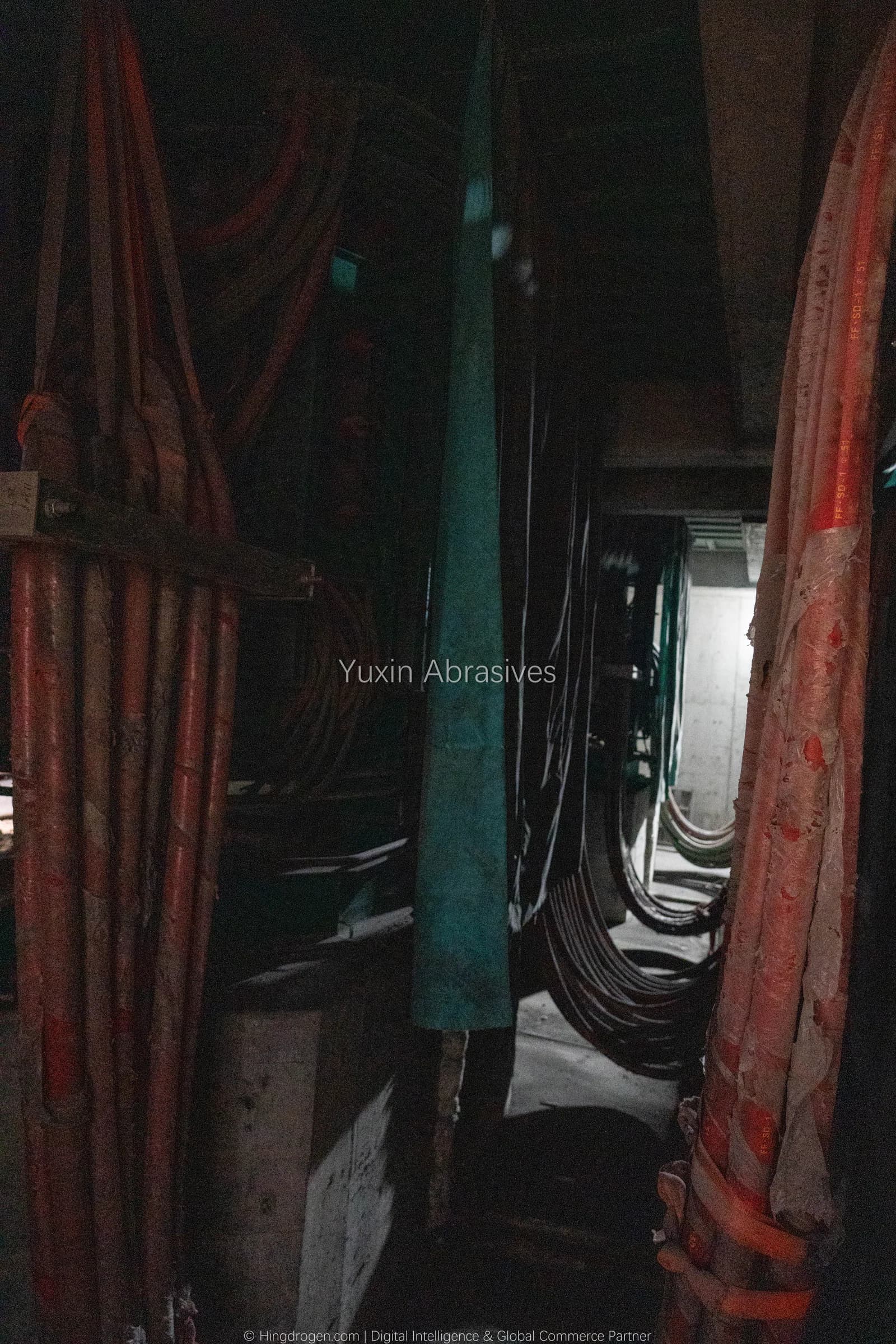

YUXIN production photograph: Electric furnace melting, record _DSC9112

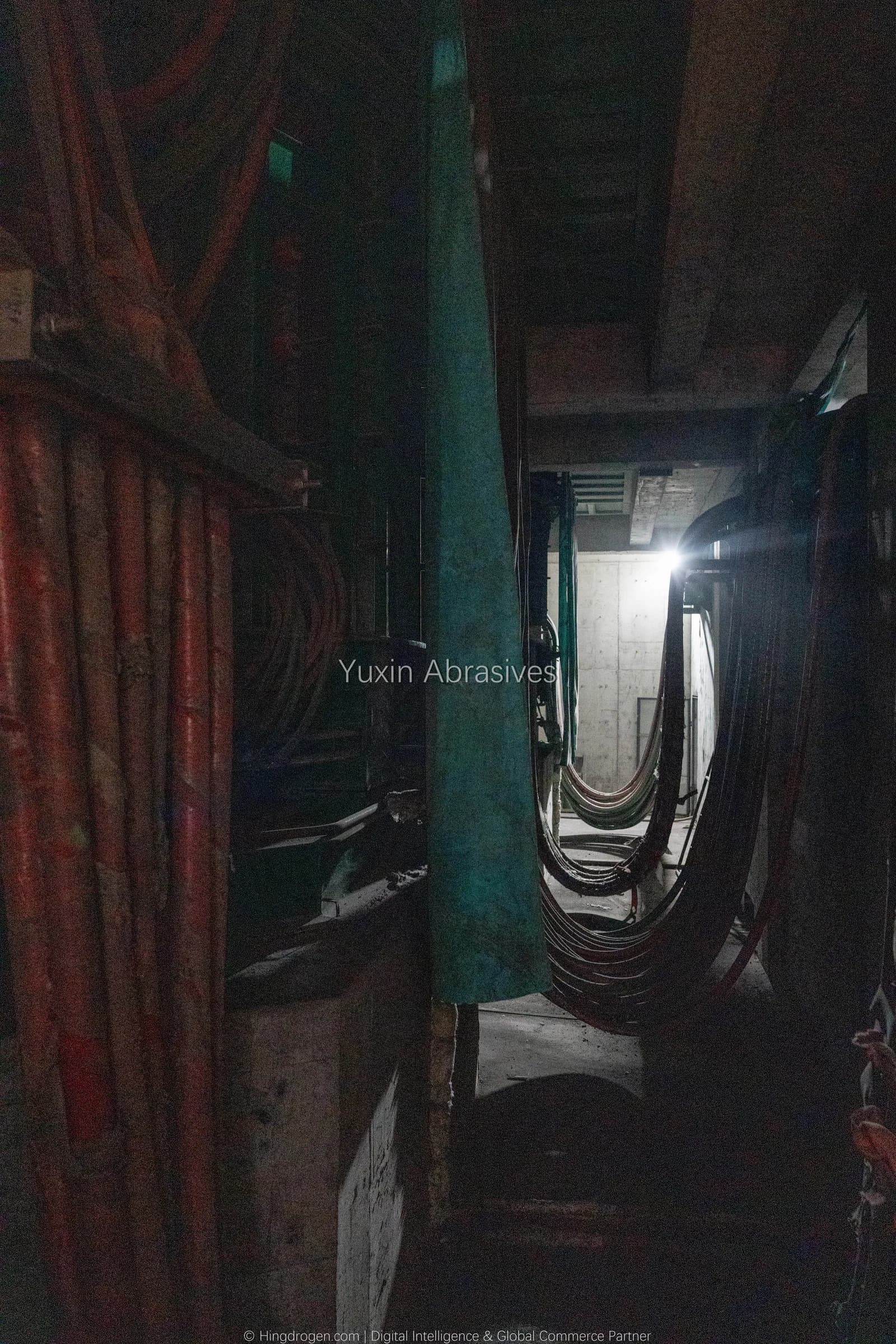

YUXIN production photograph: Electric furnace melting, record _DSC9113

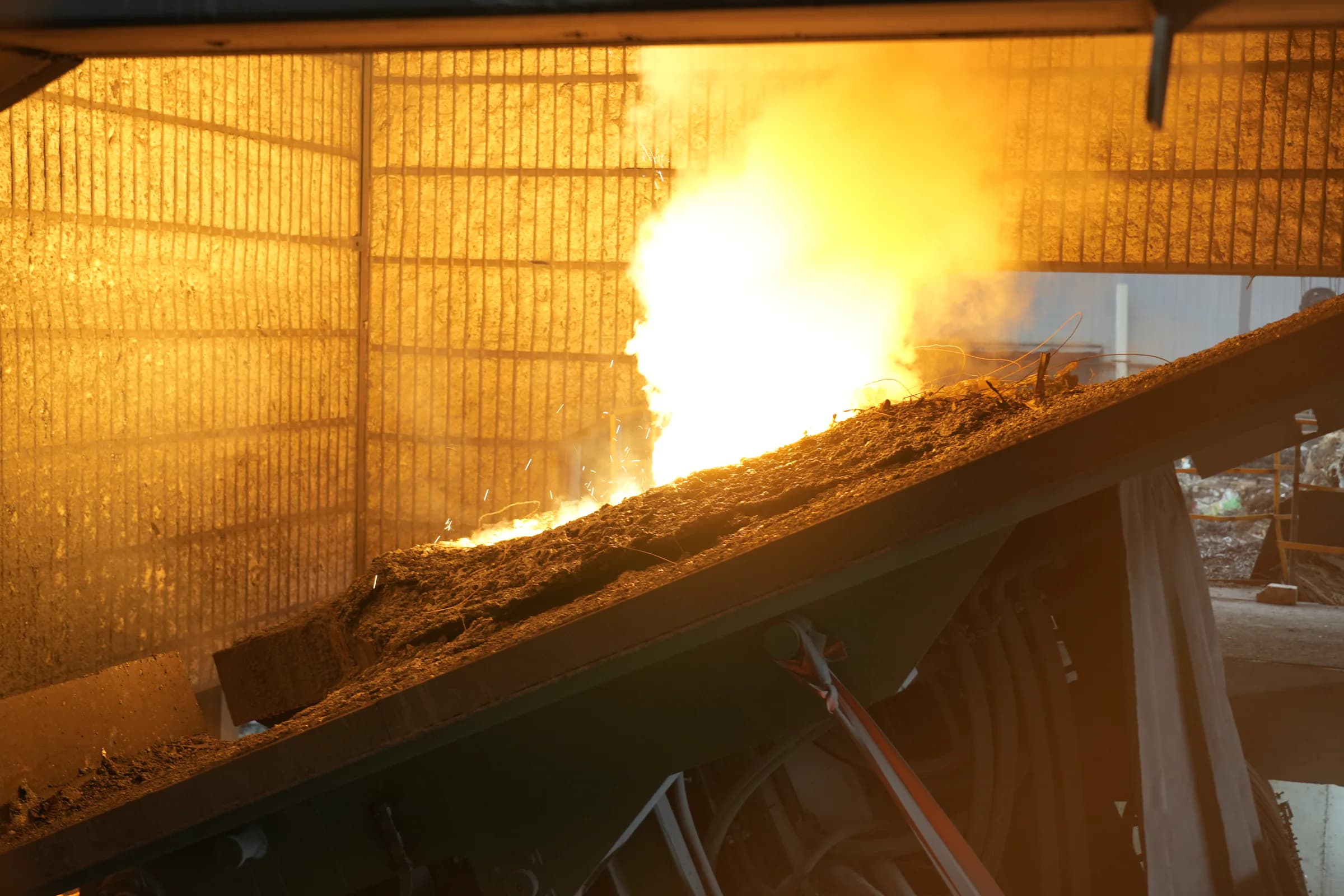

YUXIN production photograph: Electric furnace melting, record _DSC9214
04

Molten steel transfer & centrifugal granulation

The photographs show the molten-steel transfer and centrifugal-granulation area.

16 site photographs

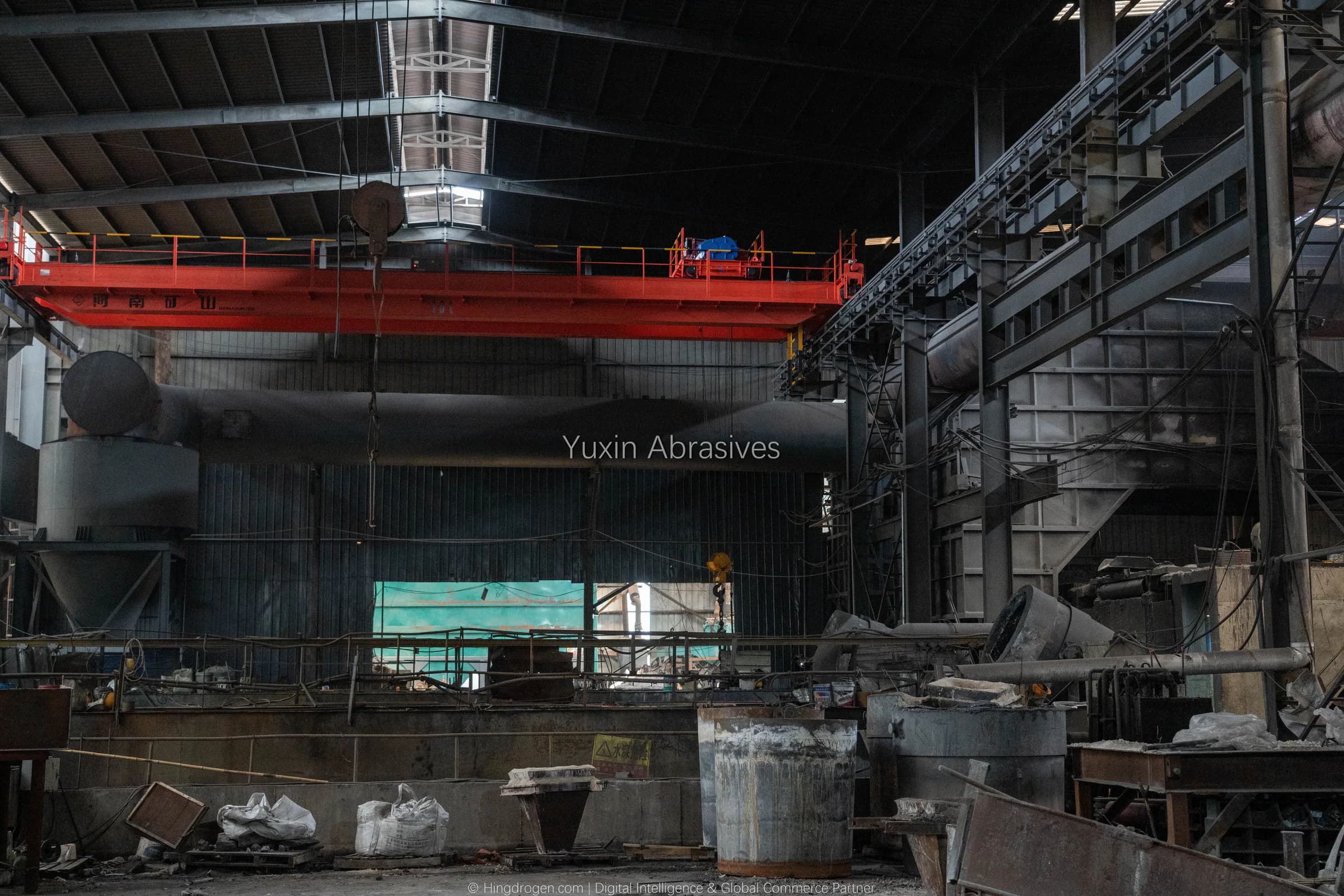

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9099

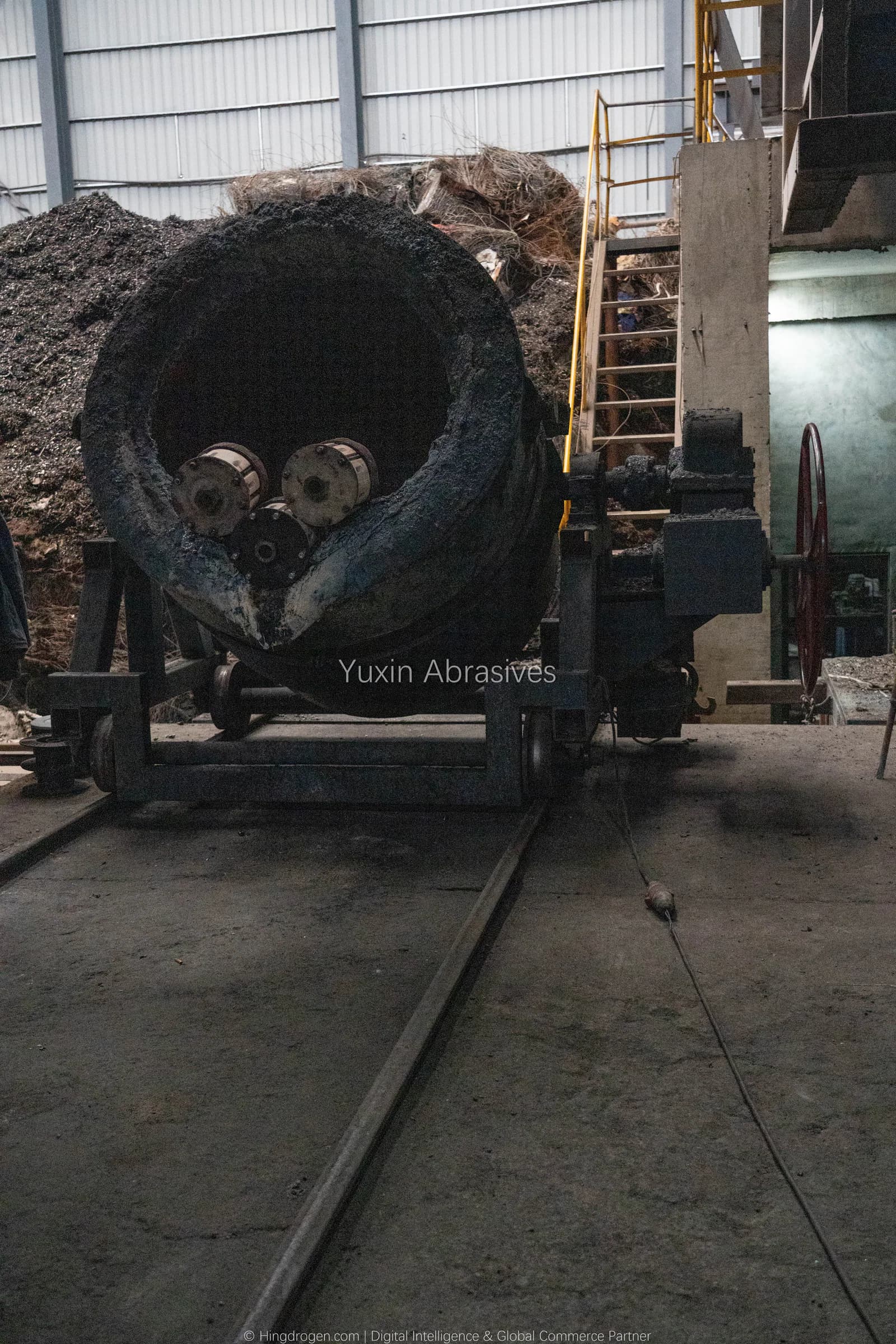

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9115

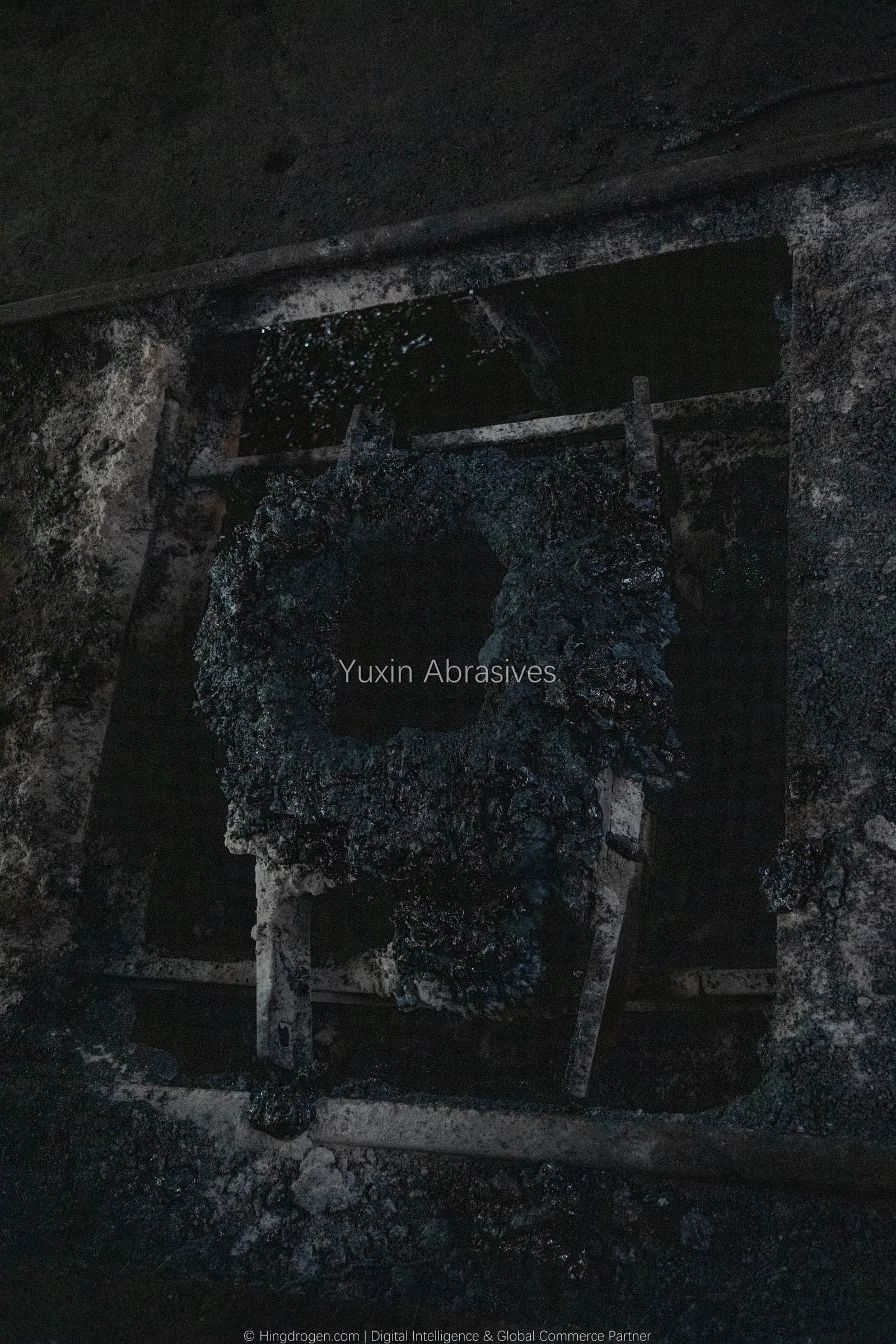

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9116

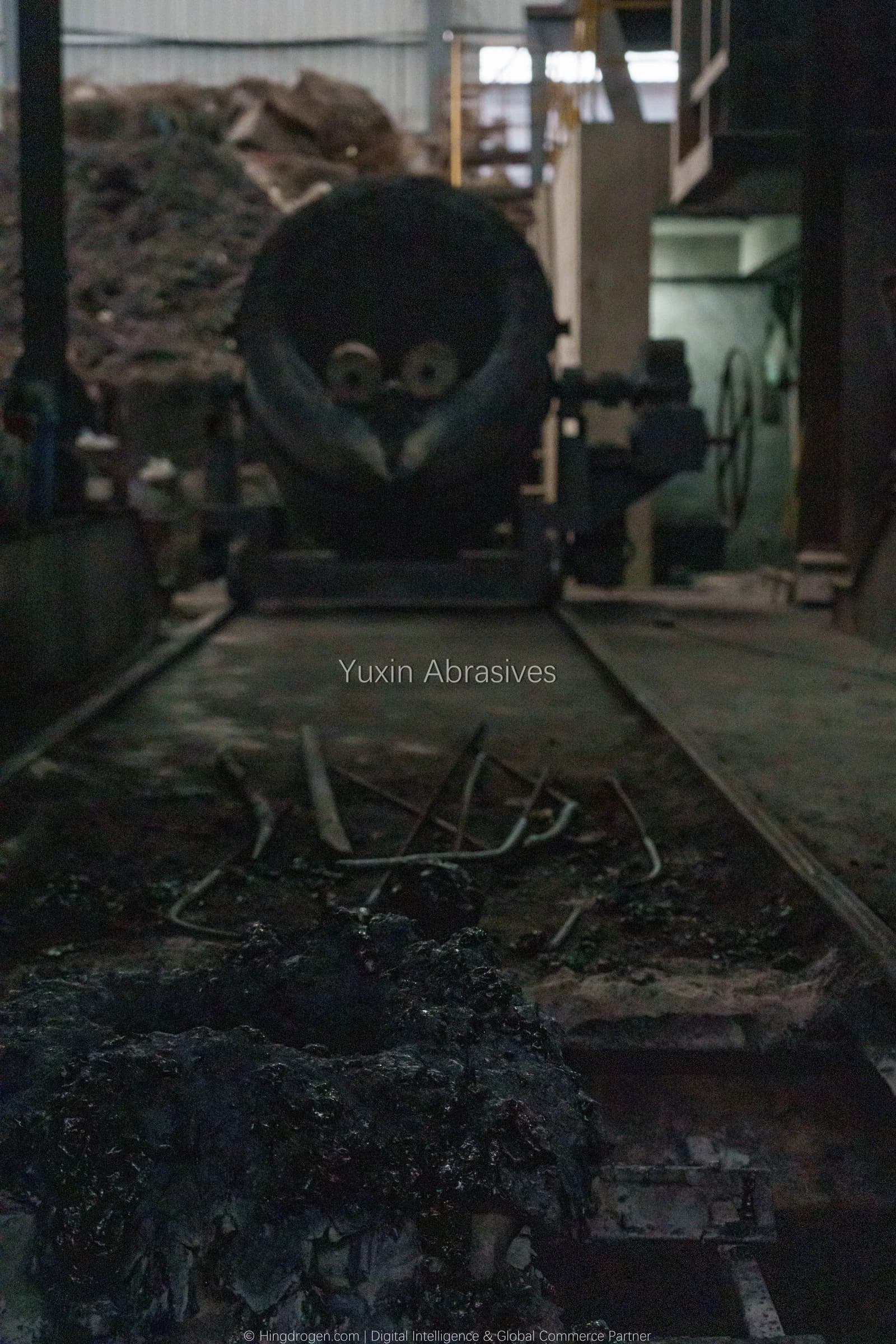

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9117
YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9211

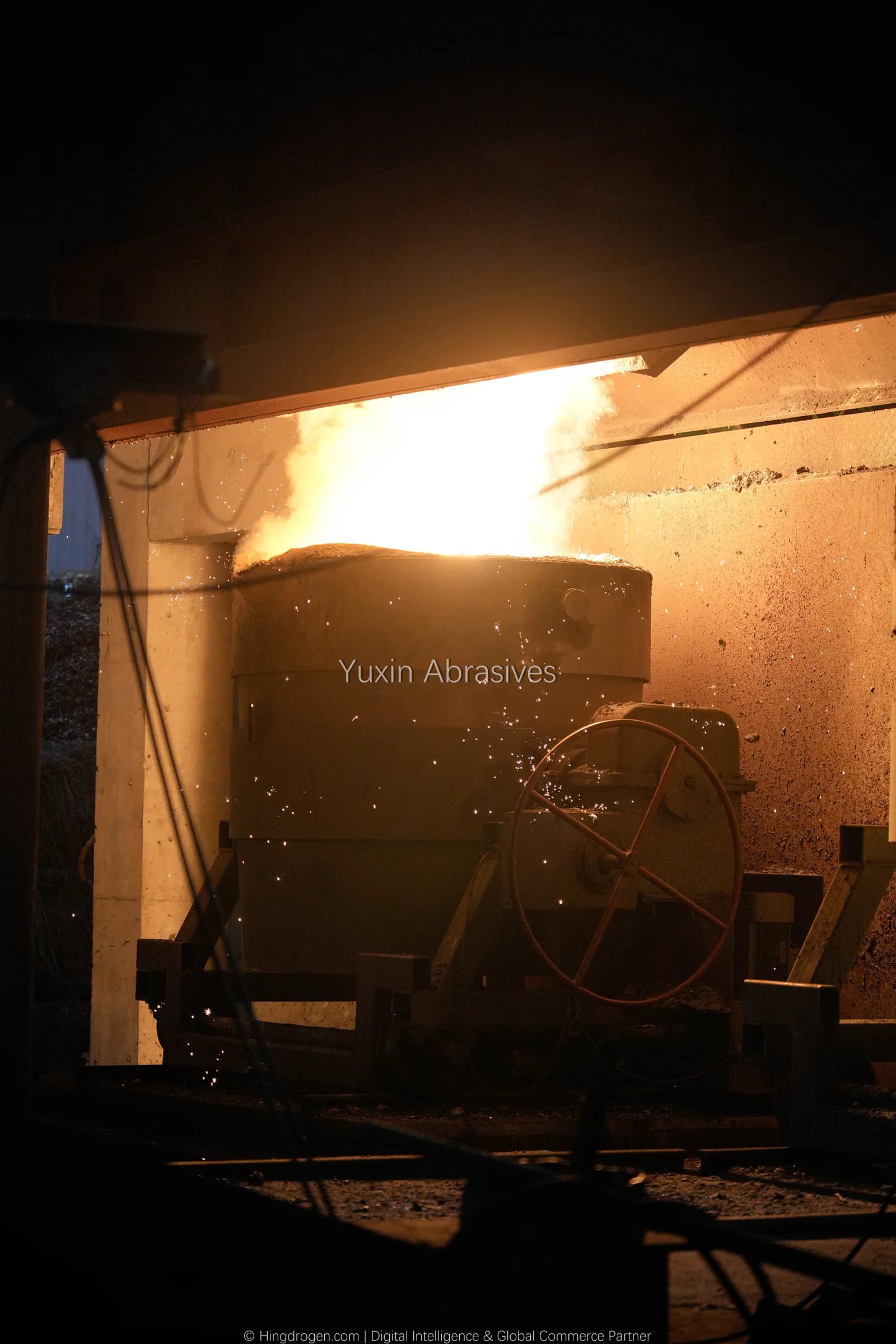

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9223
YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9230

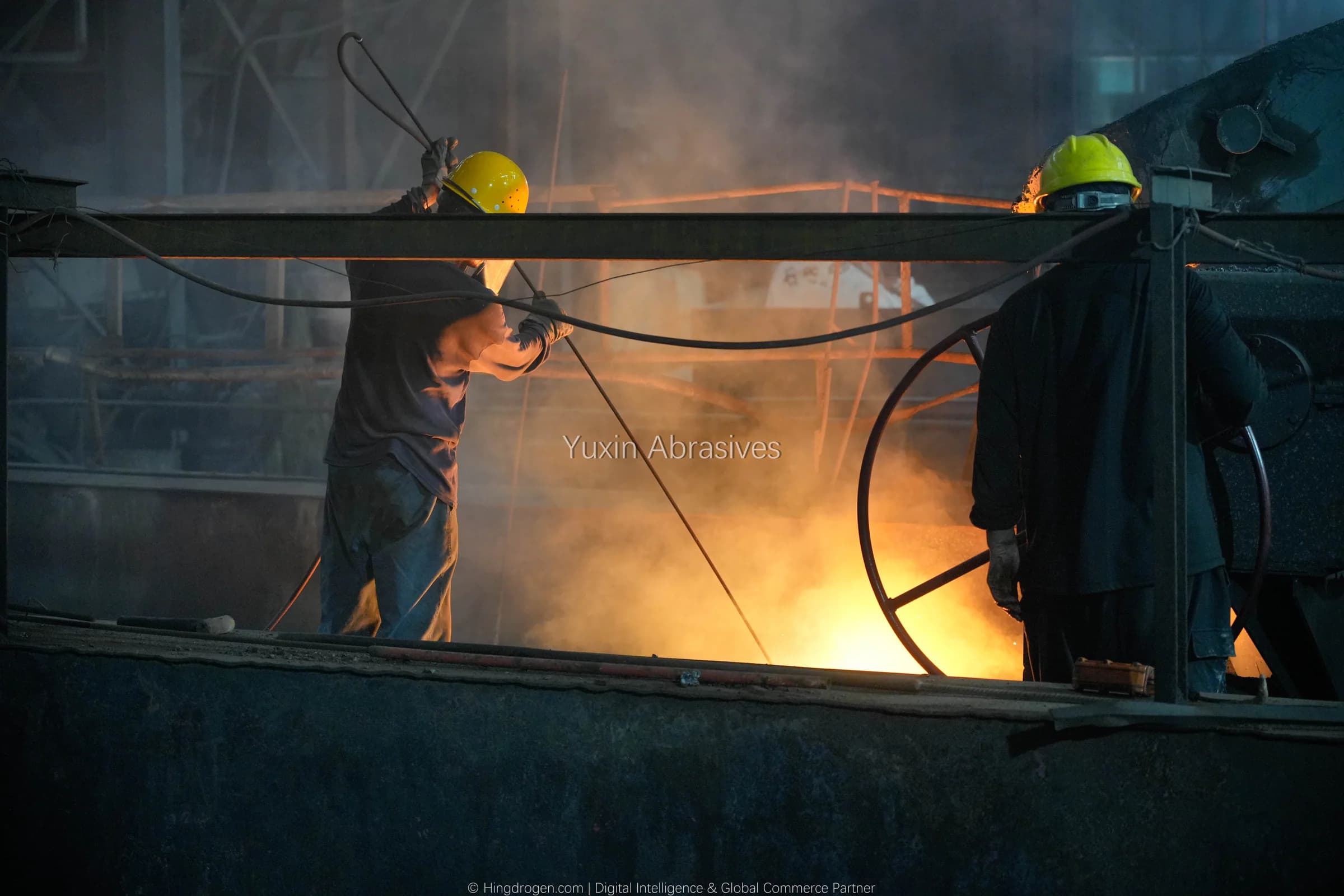

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9238

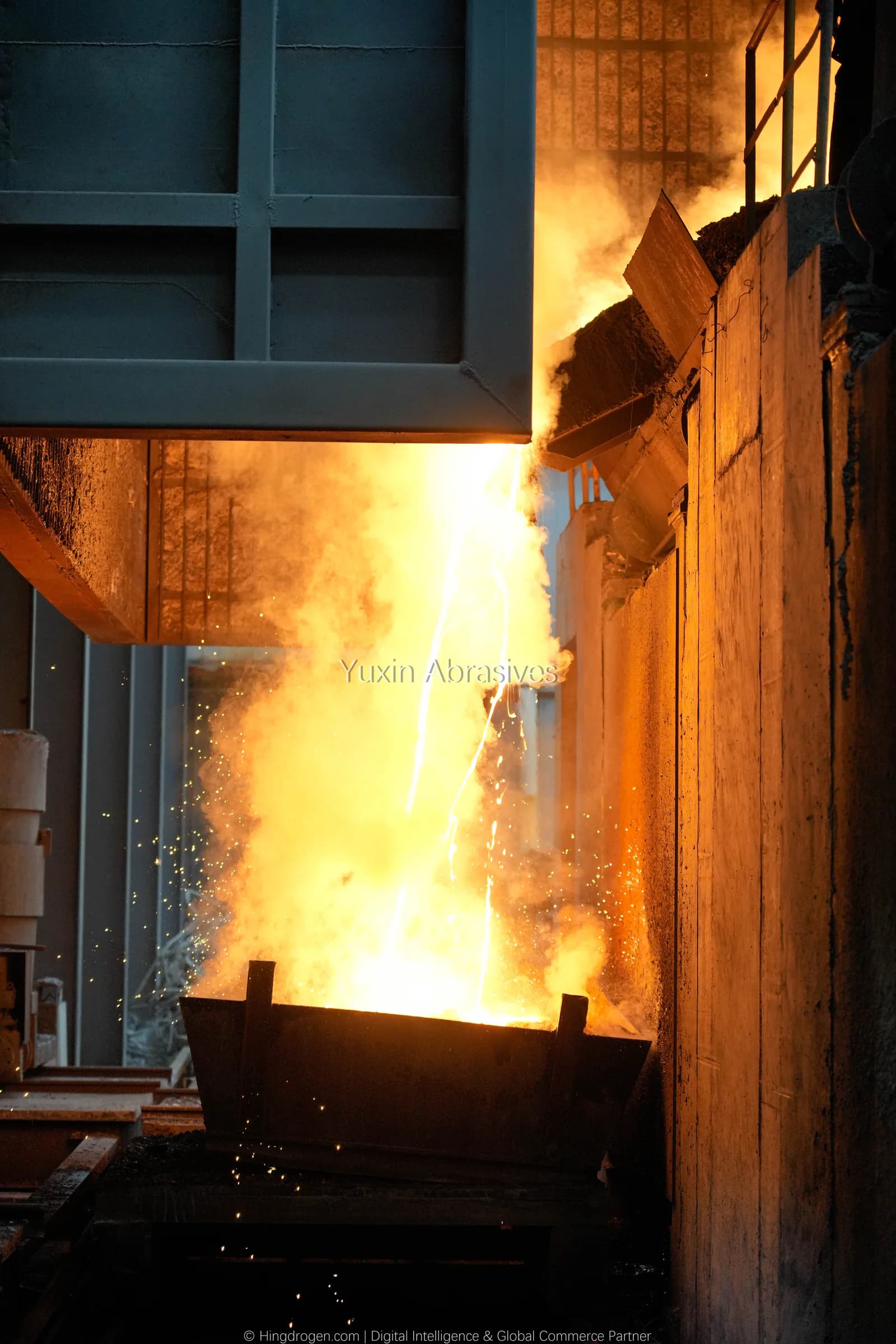

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9265

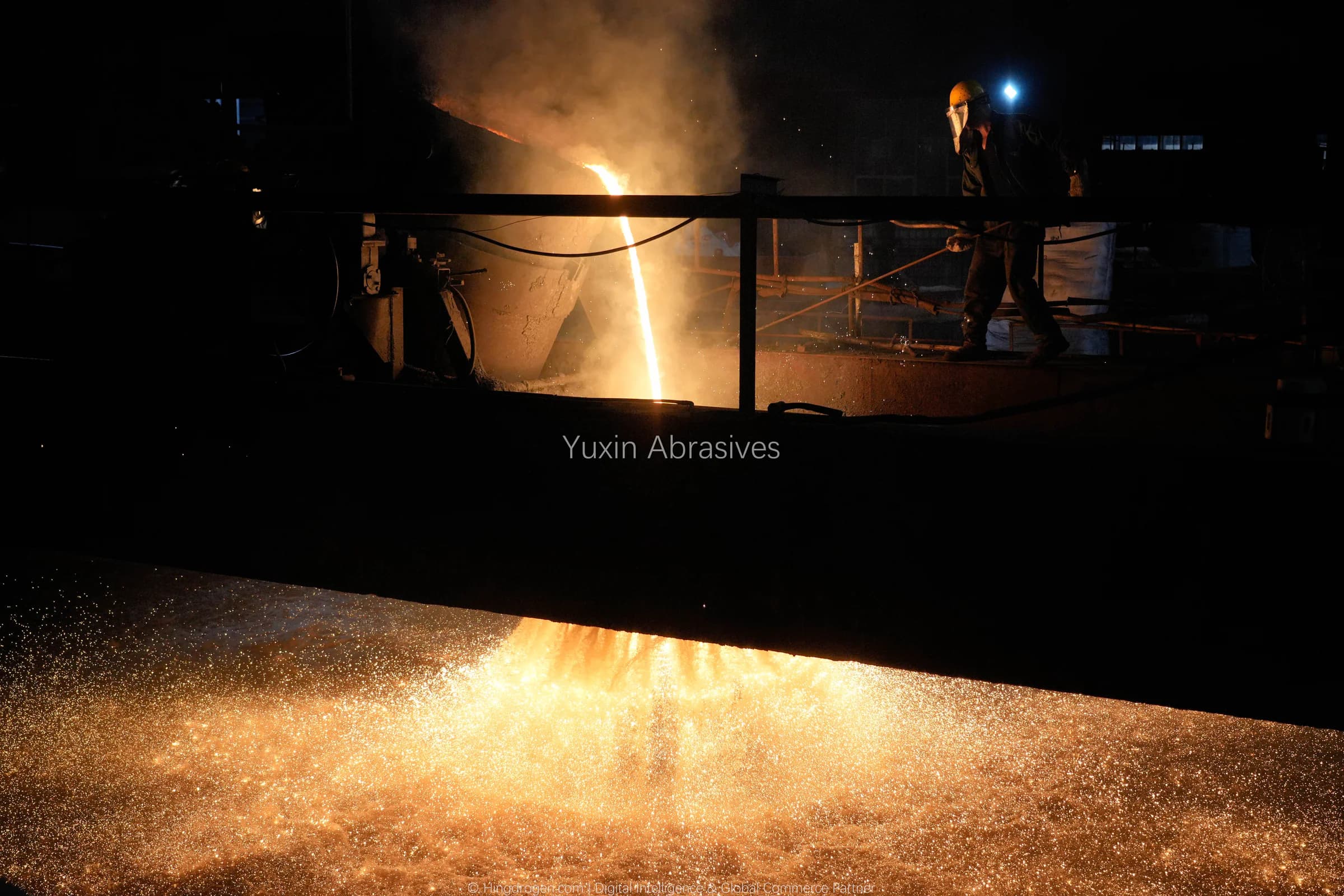

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9285

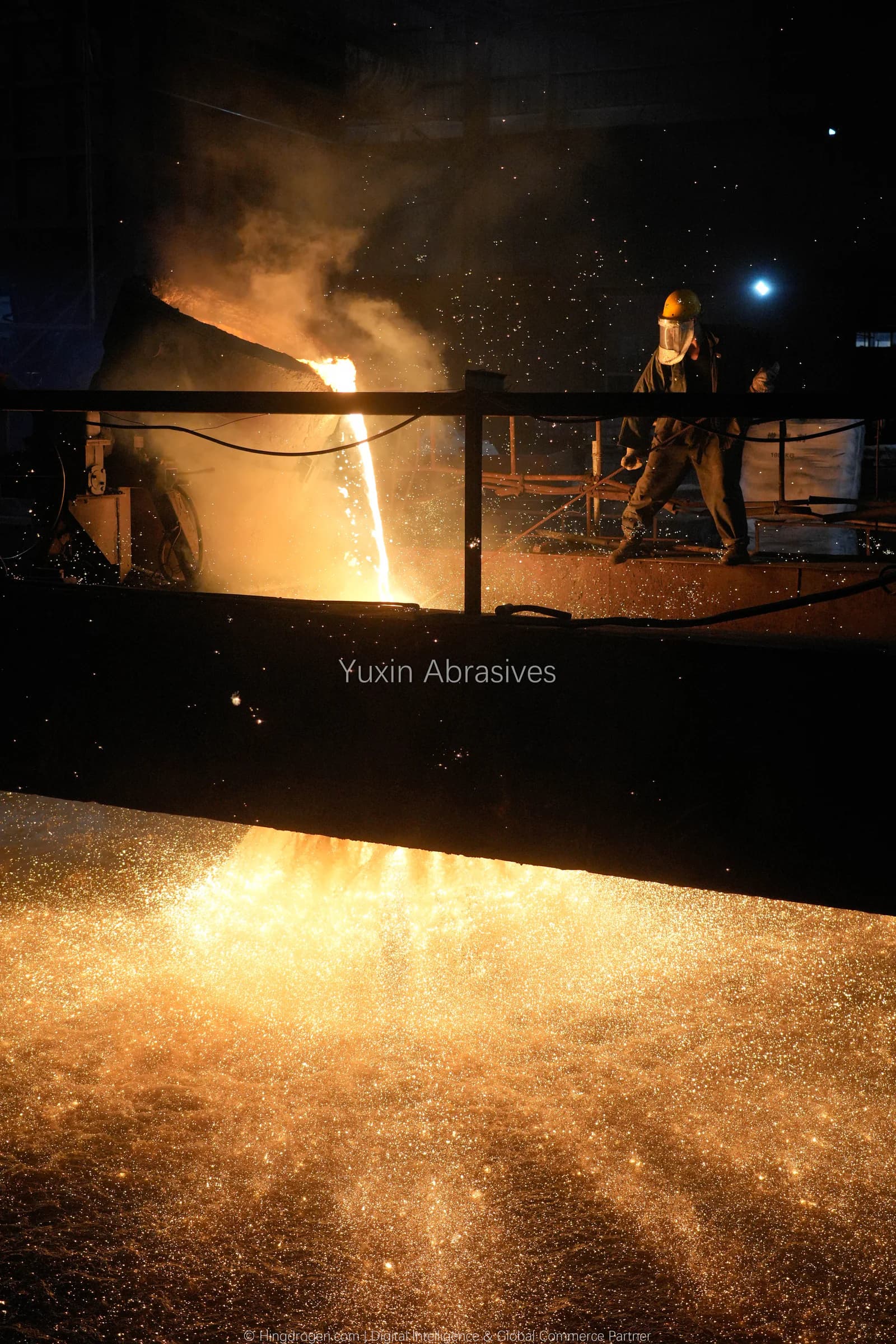

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9291

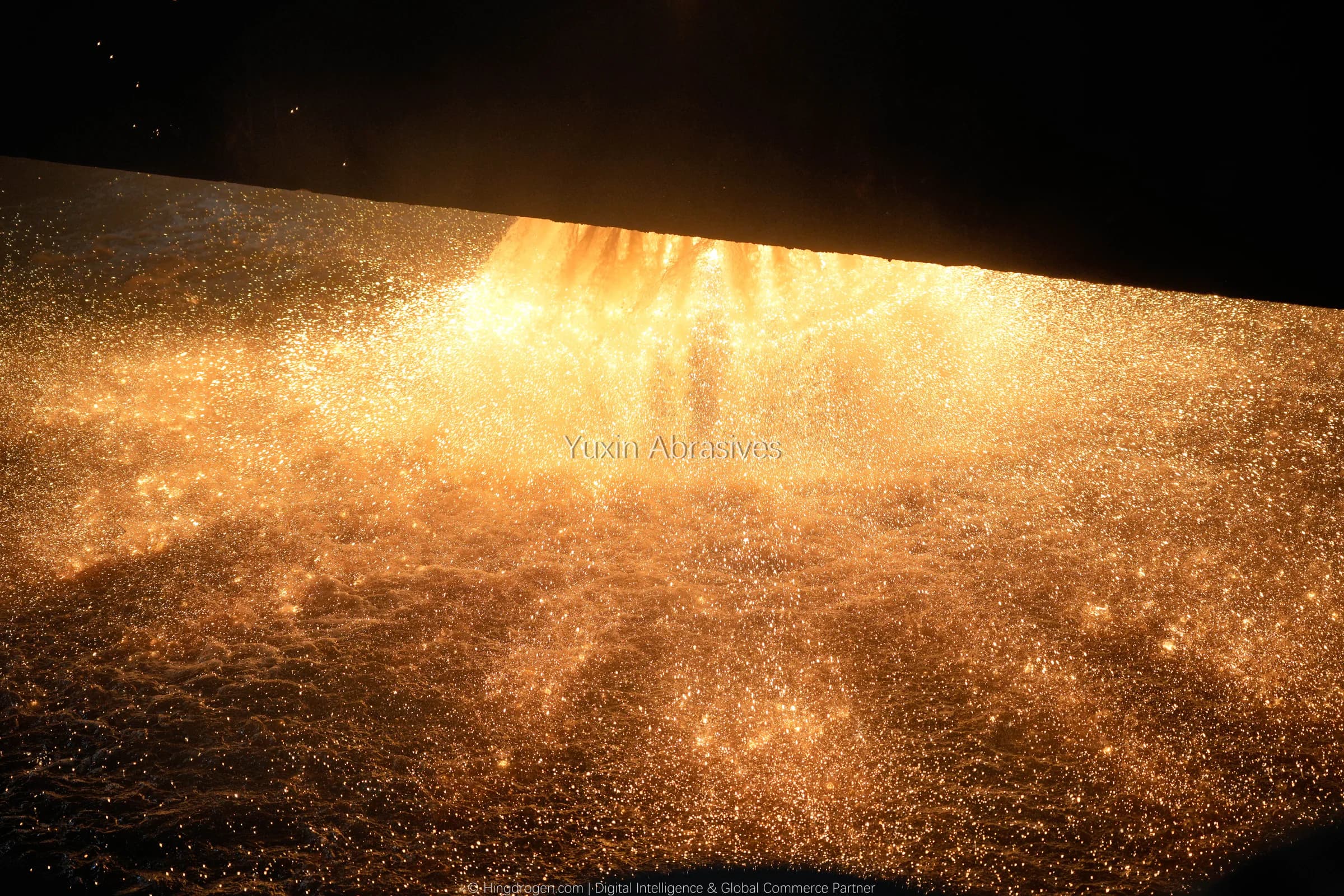

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9316

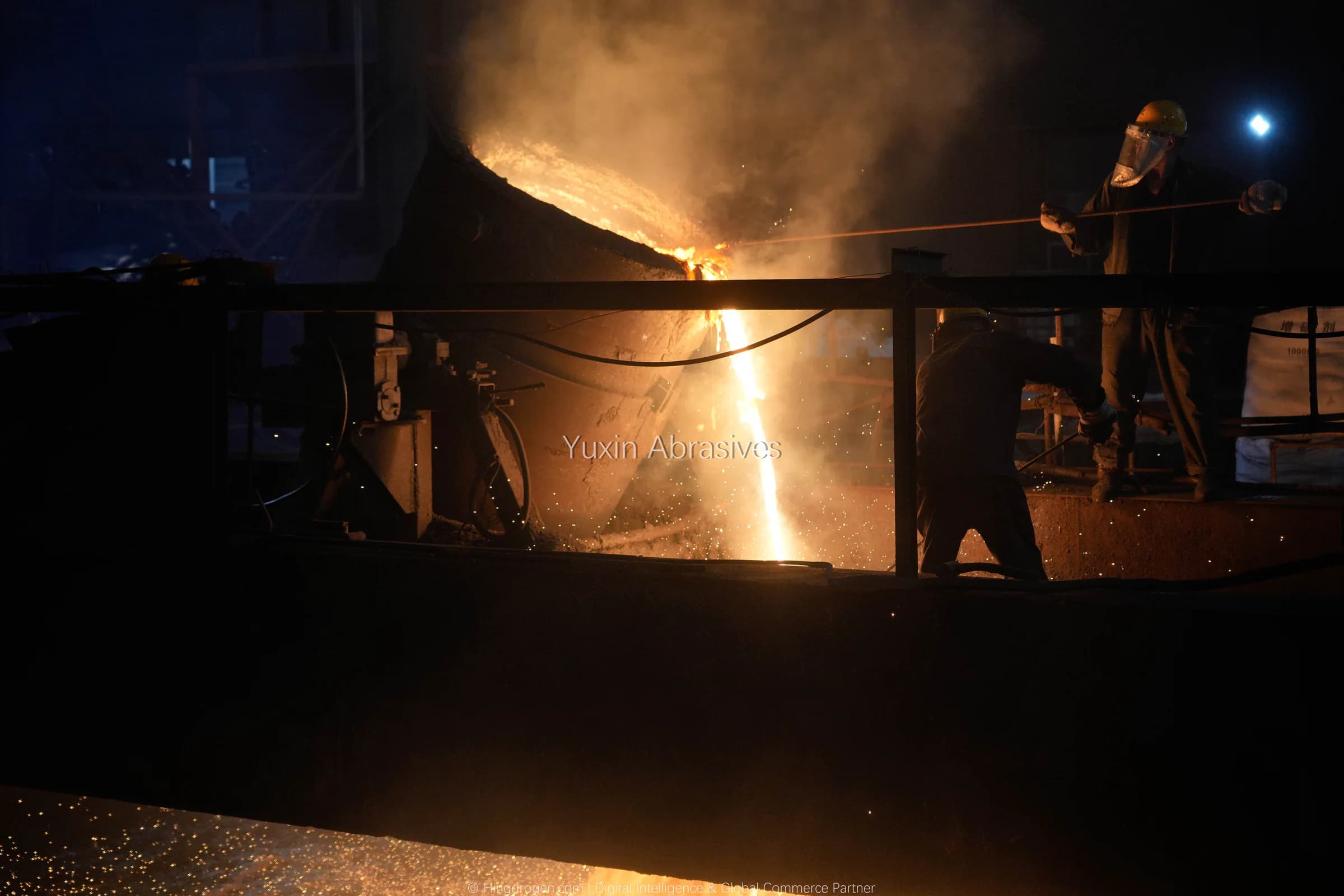

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9318

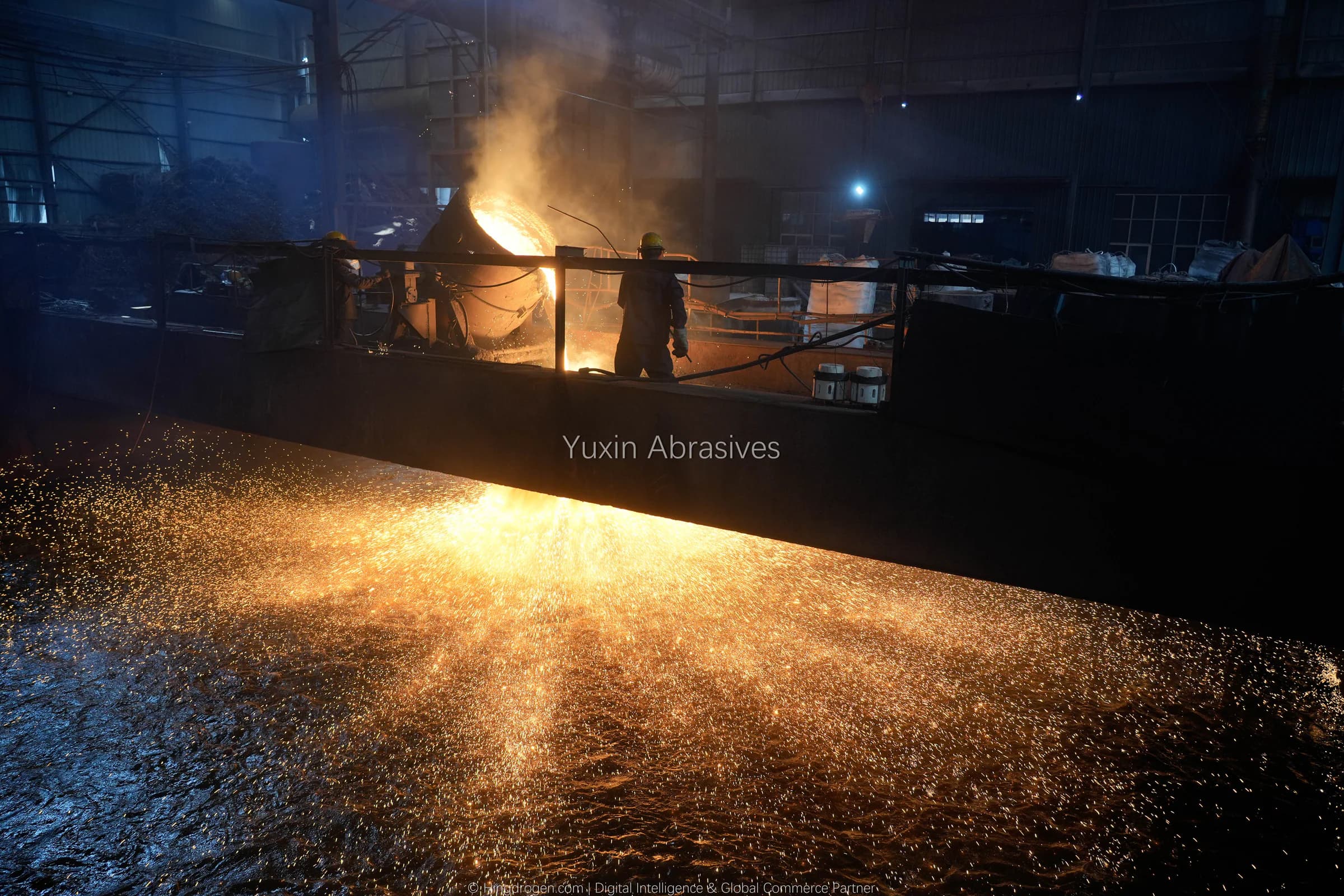

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9357

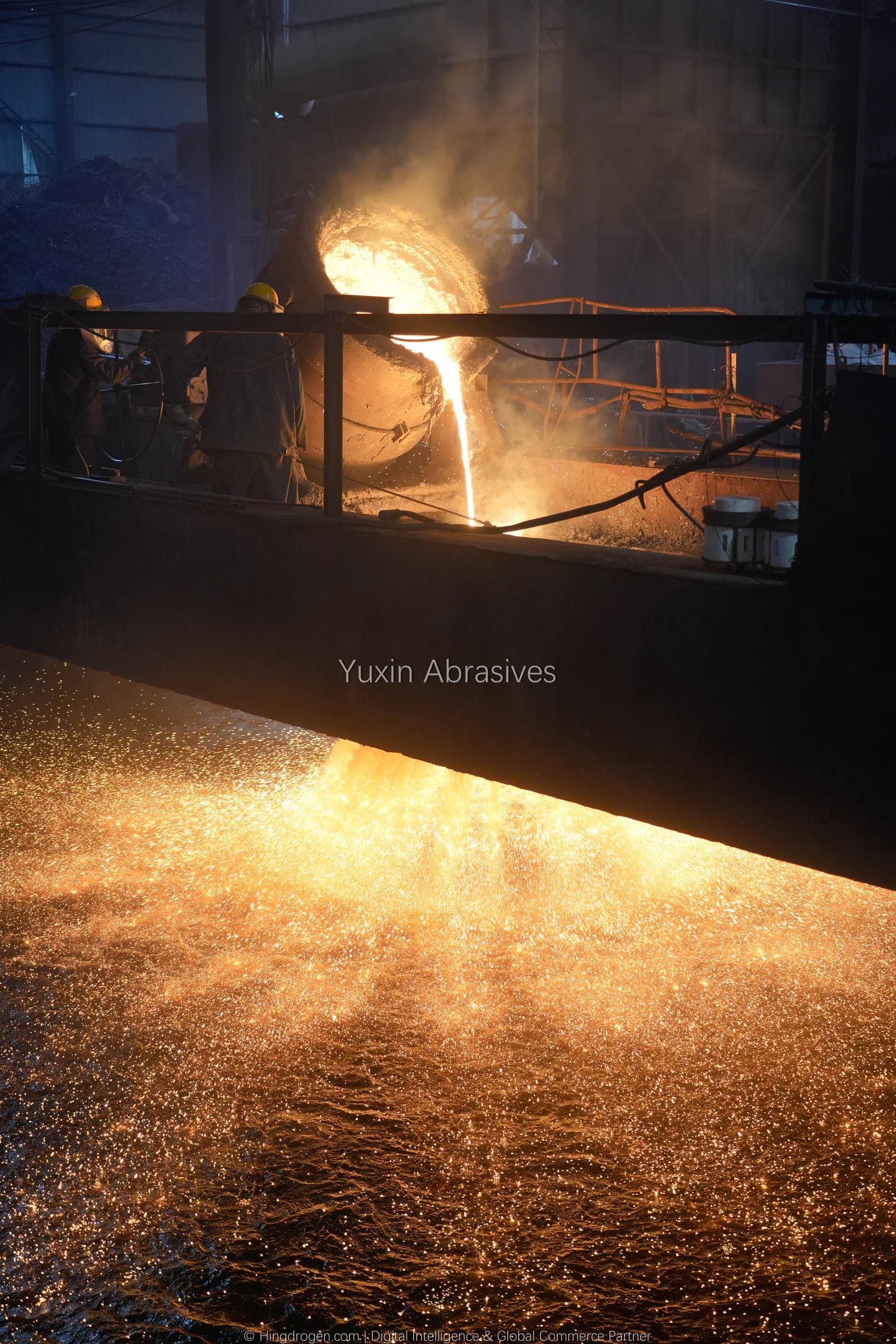

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9388

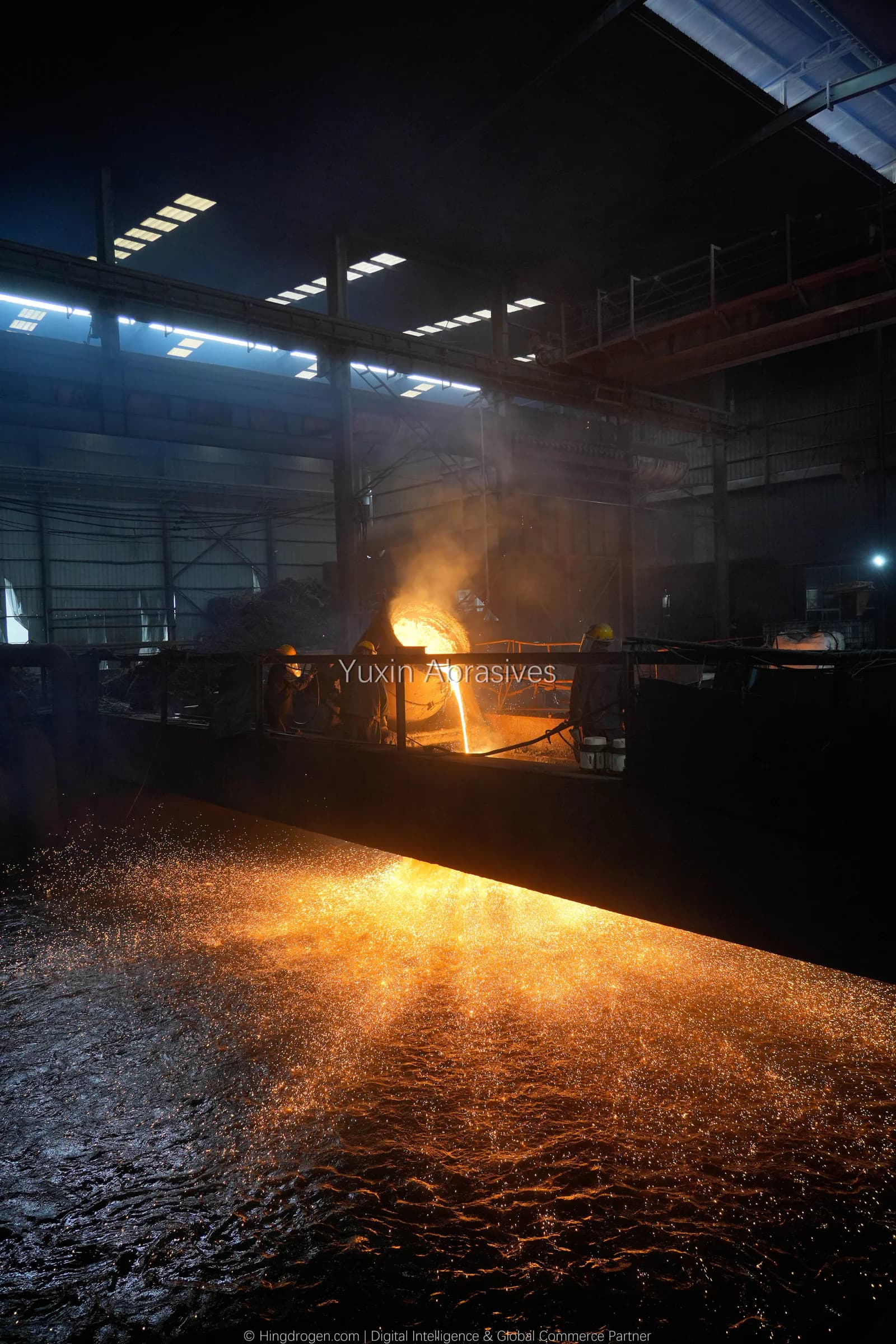

YUXIN production photograph: Molten steel transfer & centrifugal granulation, record _DSC9390
05

Cooling & drying

The photographs show equipment, enclosures and connecting sections used for cooling and drying.

5 site photographs

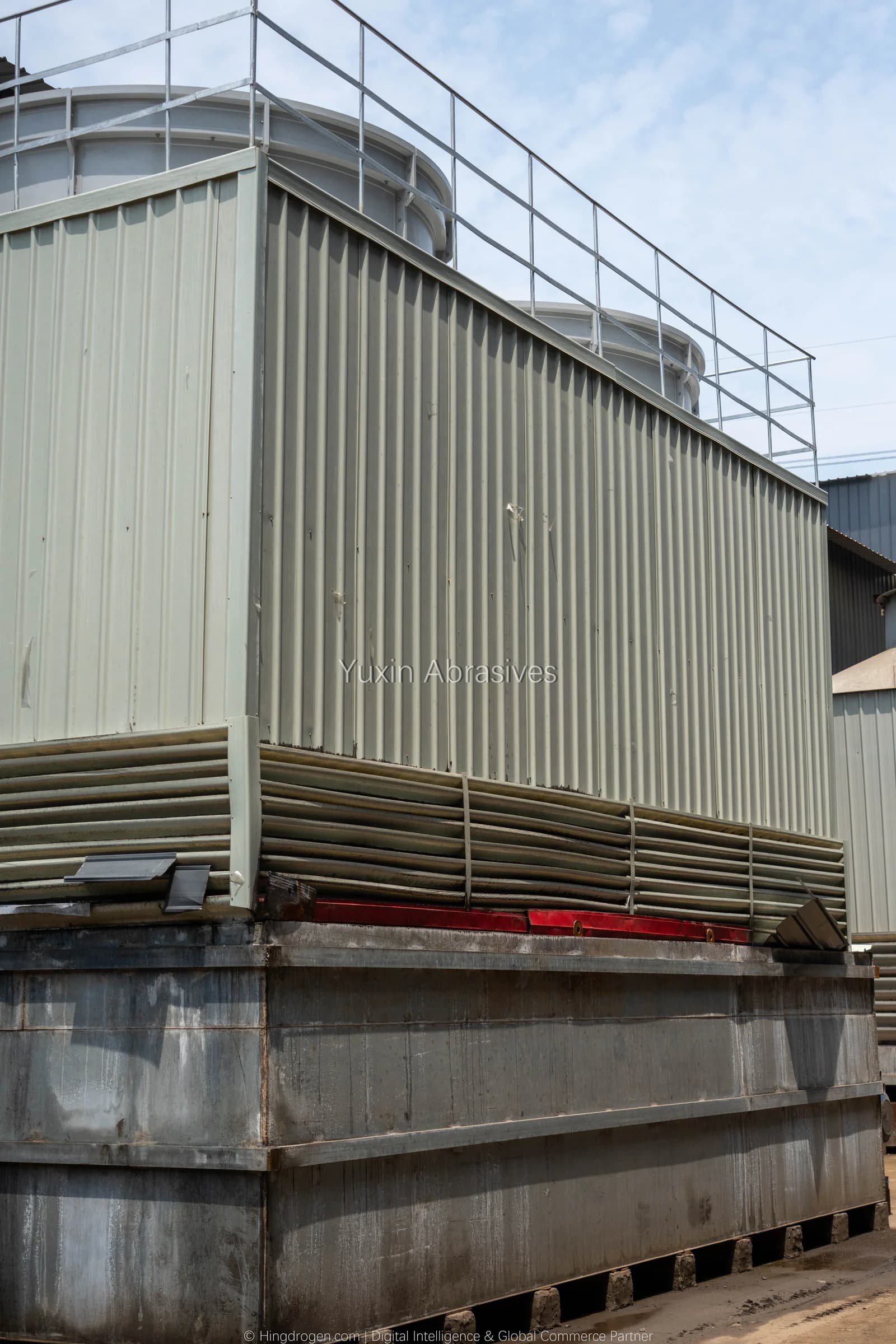

YUXIN production photograph: Cooling & drying, record _DSC9104

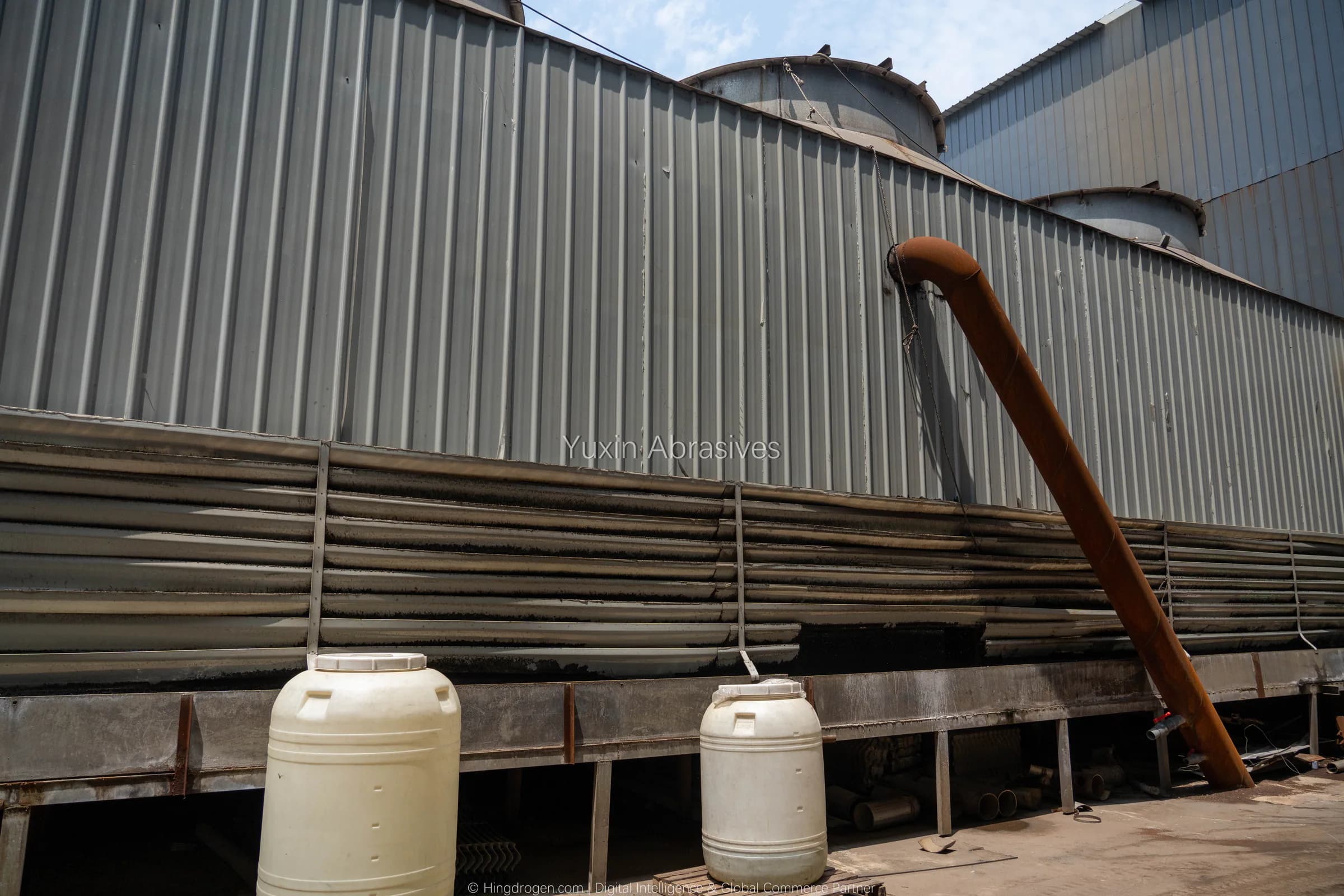

YUXIN production photograph: Cooling & drying, record _DSC9105

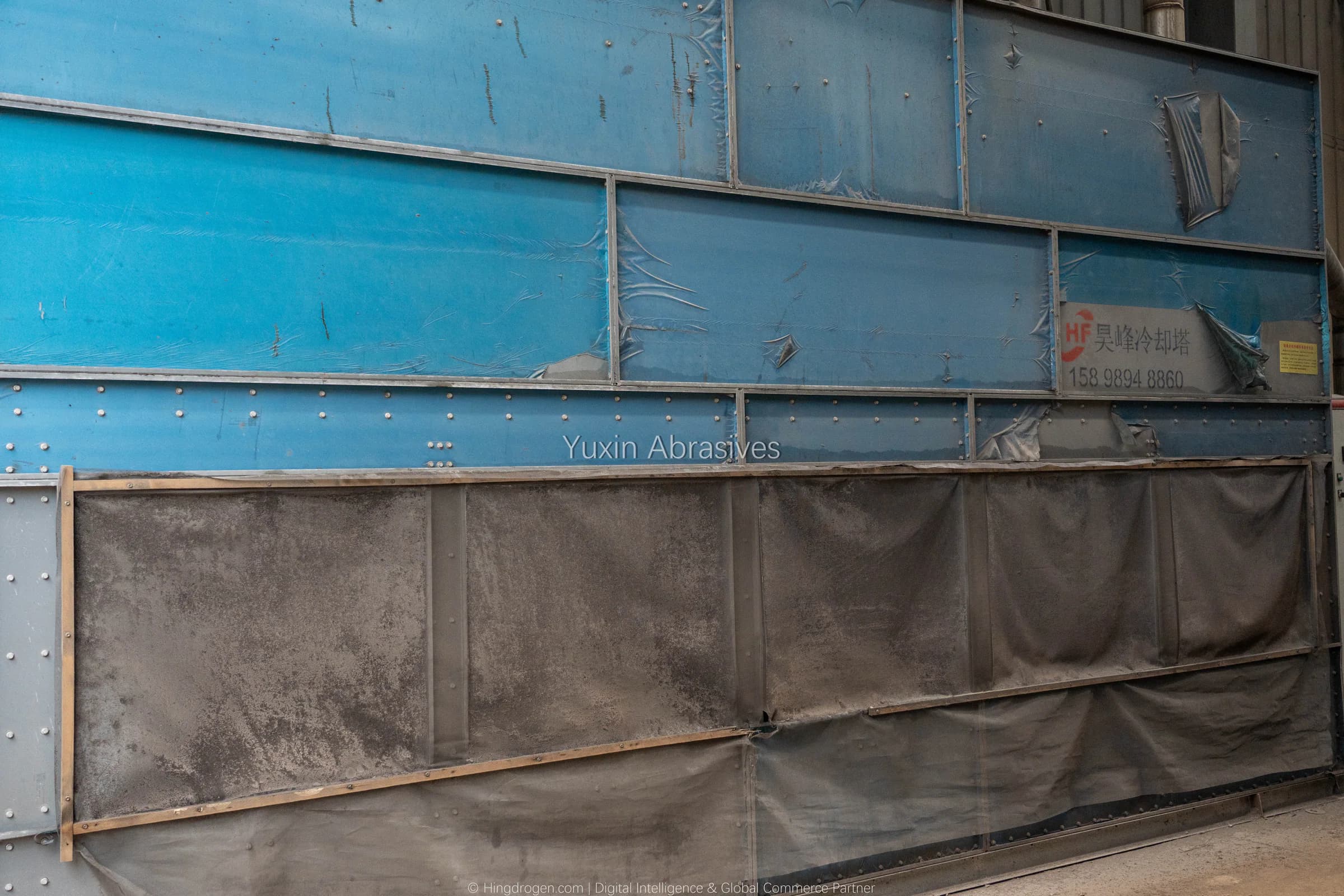

YUXIN production photograph: Cooling & drying, record _DSC9106

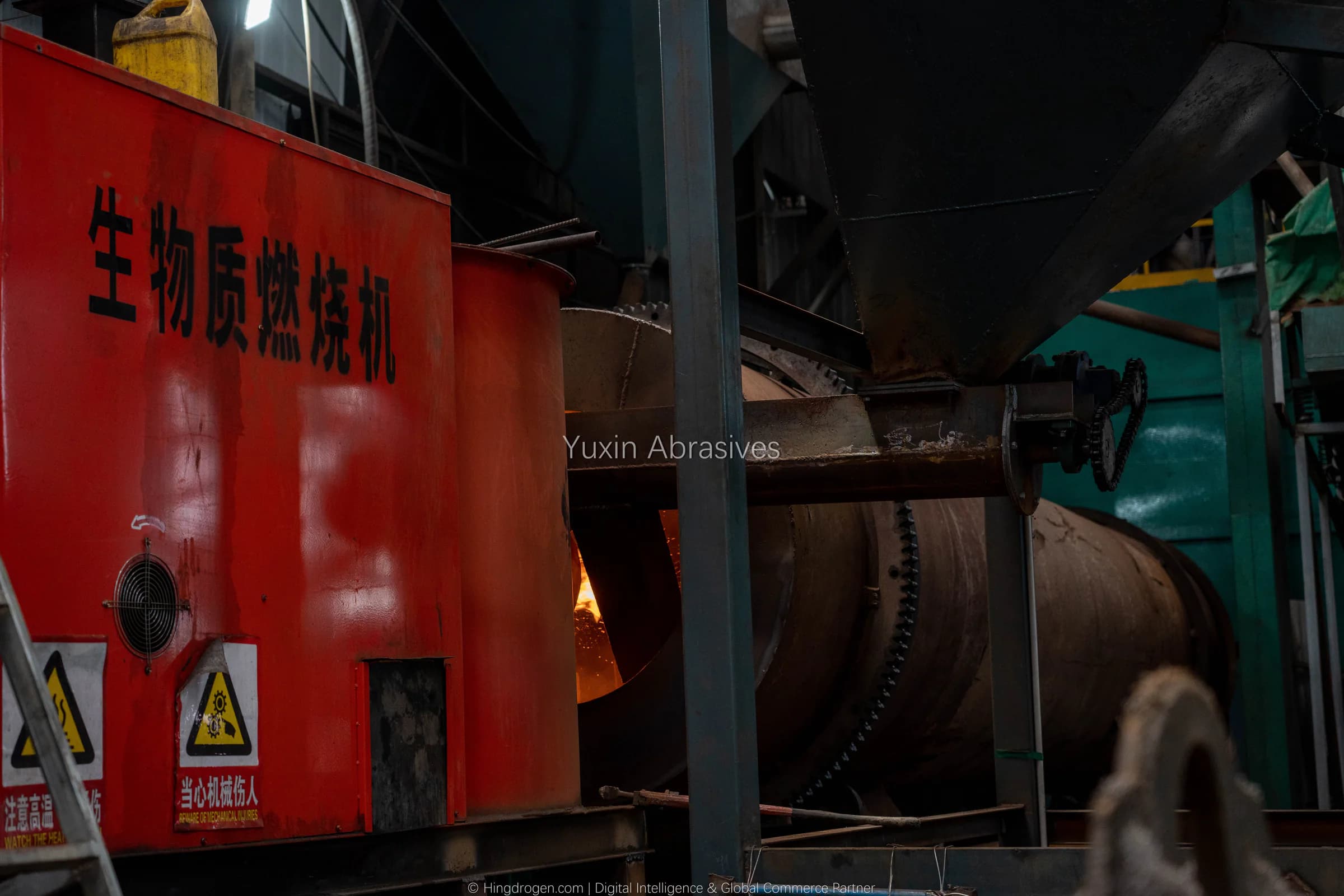

YUXIN production photograph: Cooling & drying, record _DSC9132

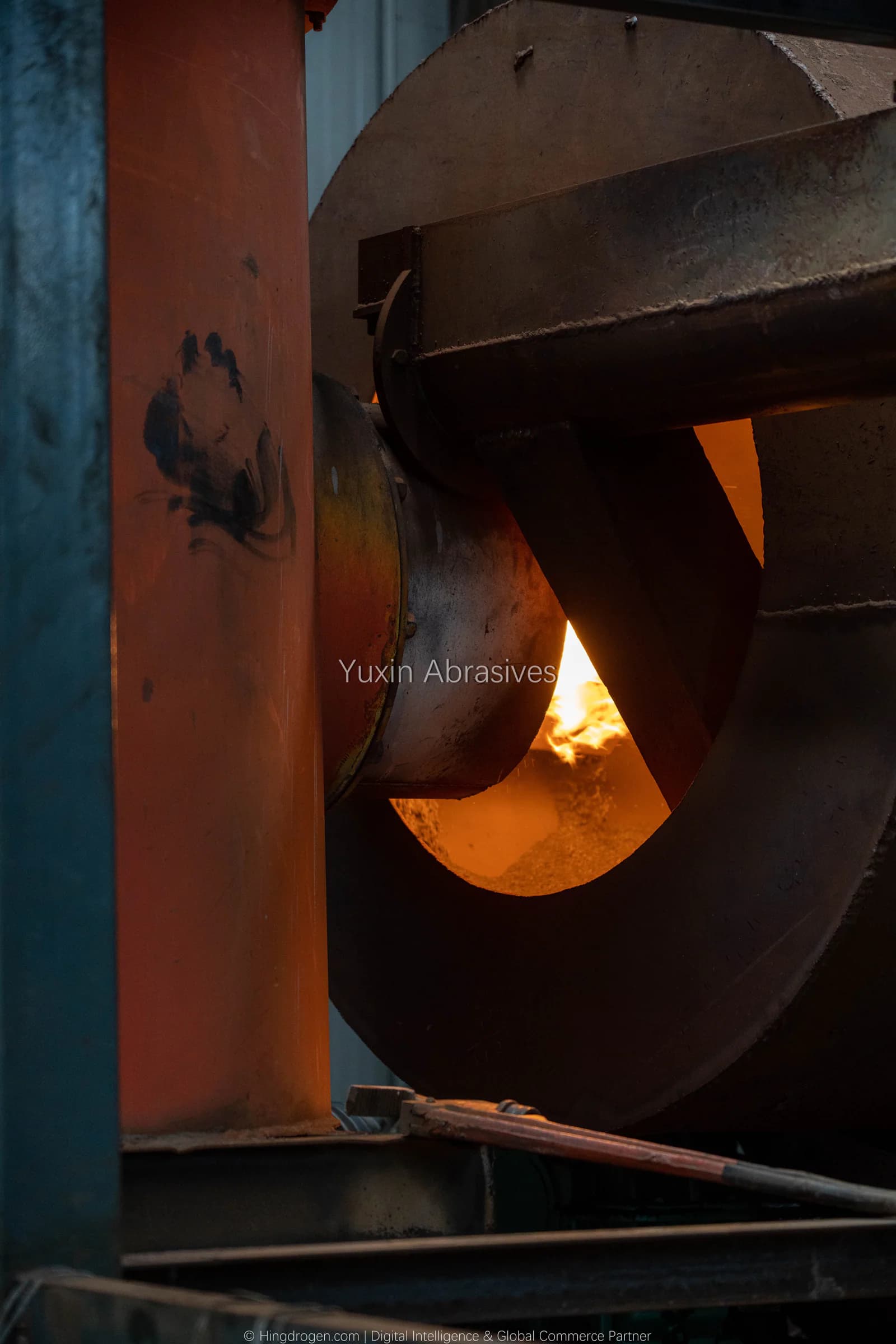

YUXIN production photograph: Cooling & drying, record _DSC9133
06

Primary screening

Lifting, transfer and screening equipment are grouped under the primary screening stage.

5 site photographs

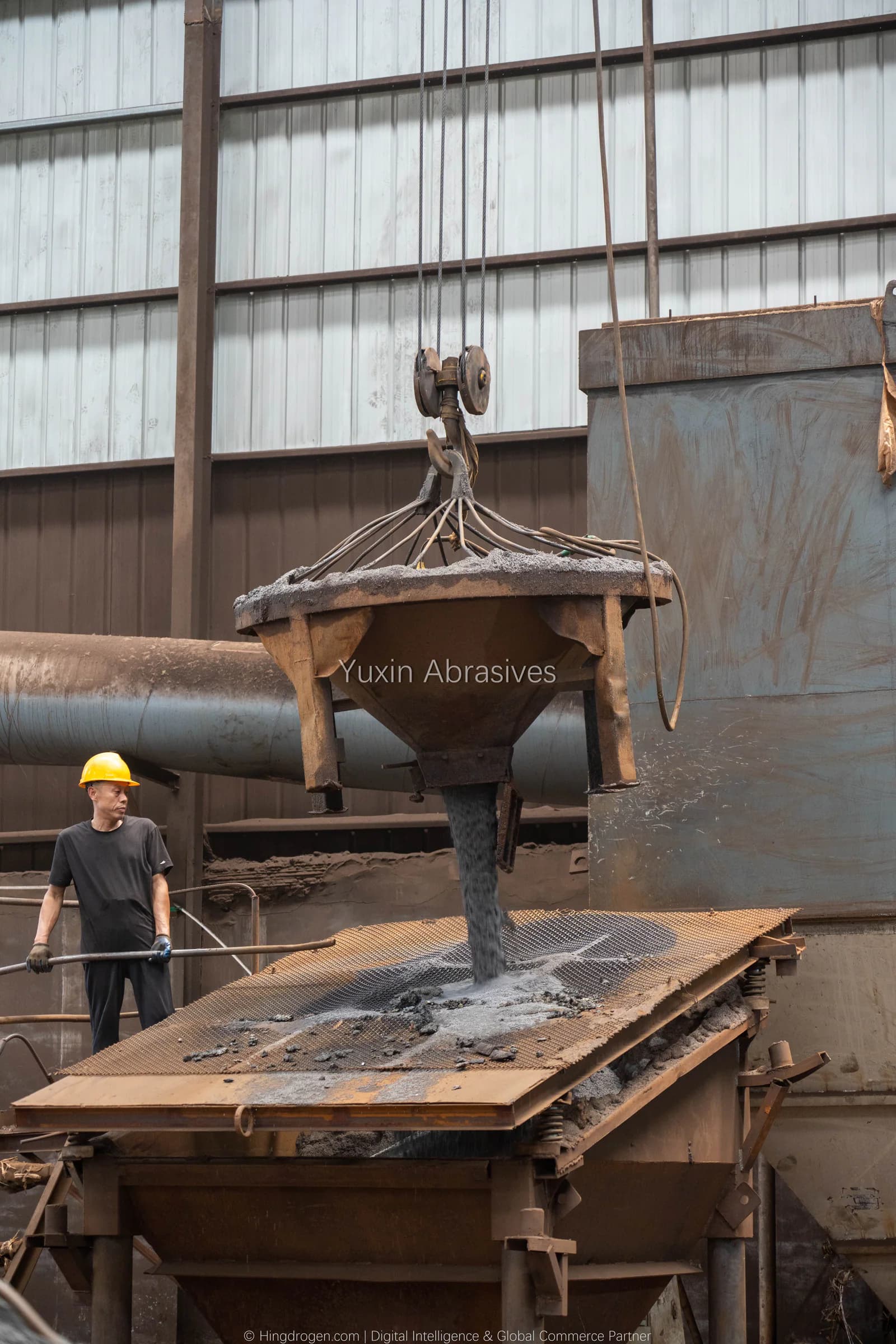

YUXIN production photograph: Primary screening, record _DSC9128

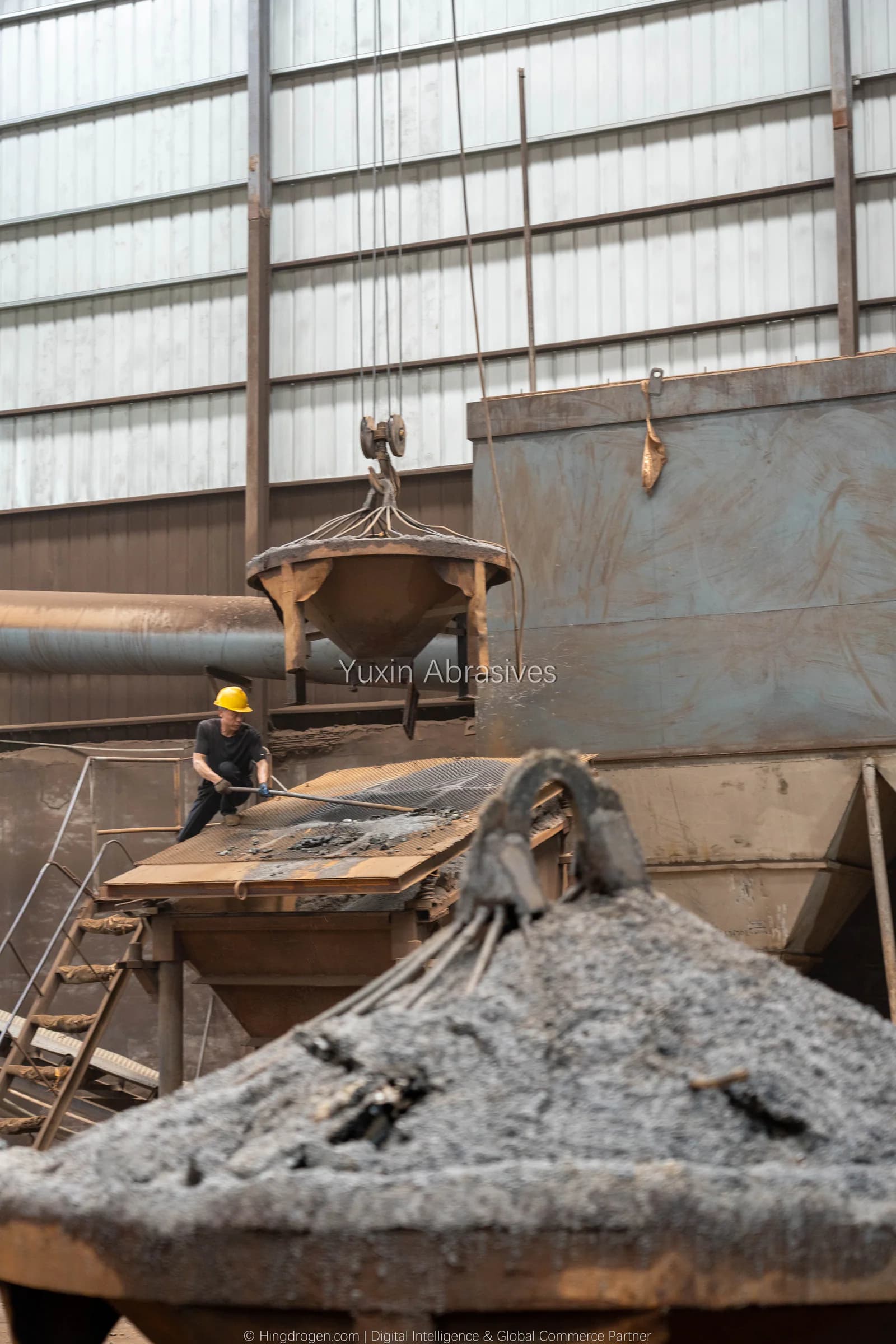

YUXIN production photograph: Primary screening, record _DSC9129
YUXIN production photograph: Primary screening, record _DSC9130

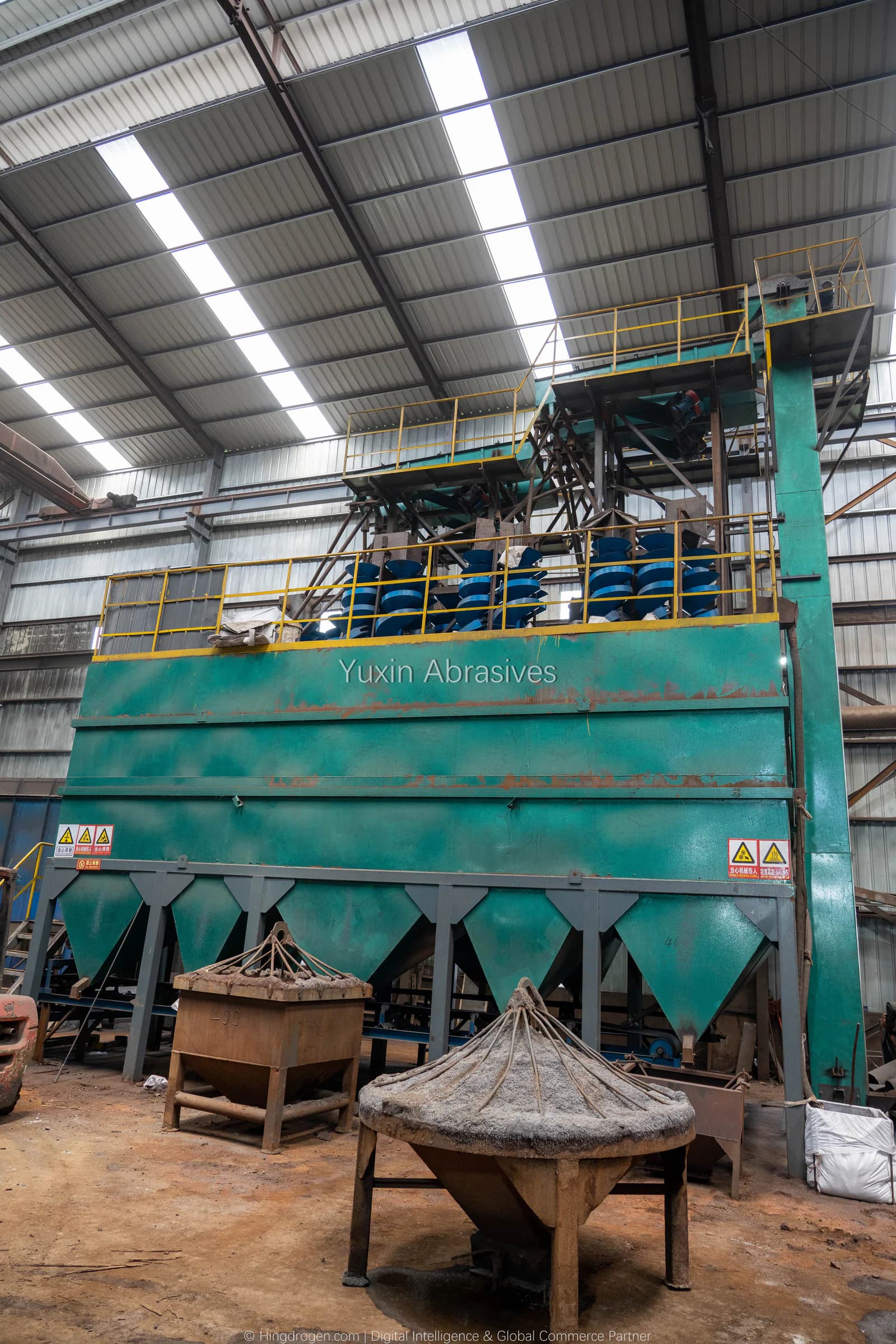

YUXIN production photograph: Primary screening, record _DSC9131

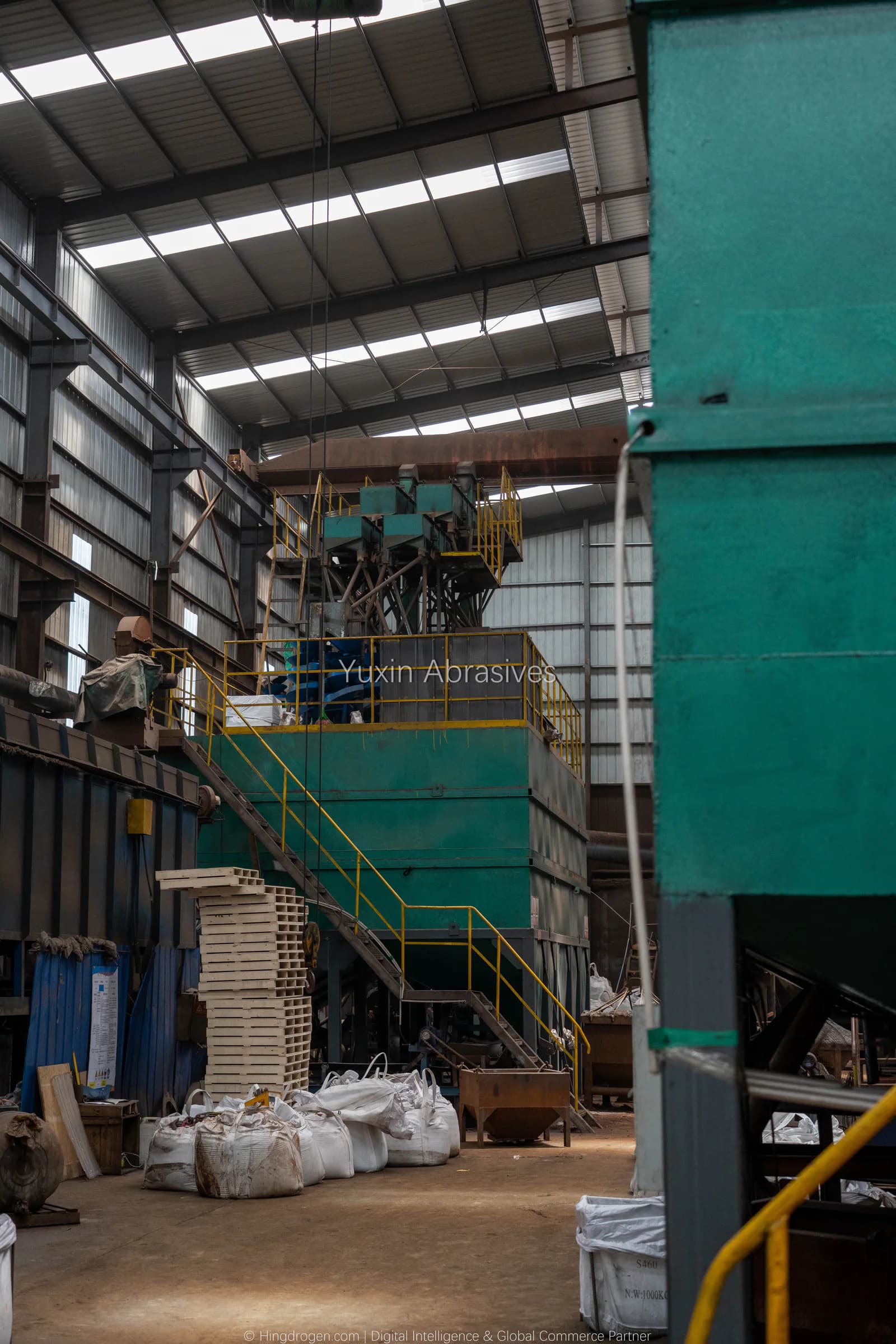

YUXIN production photograph: Primary screening, record _DSC9135
07

Quenching

The photographs show equipment used in the quenching stage.

2 site photographs

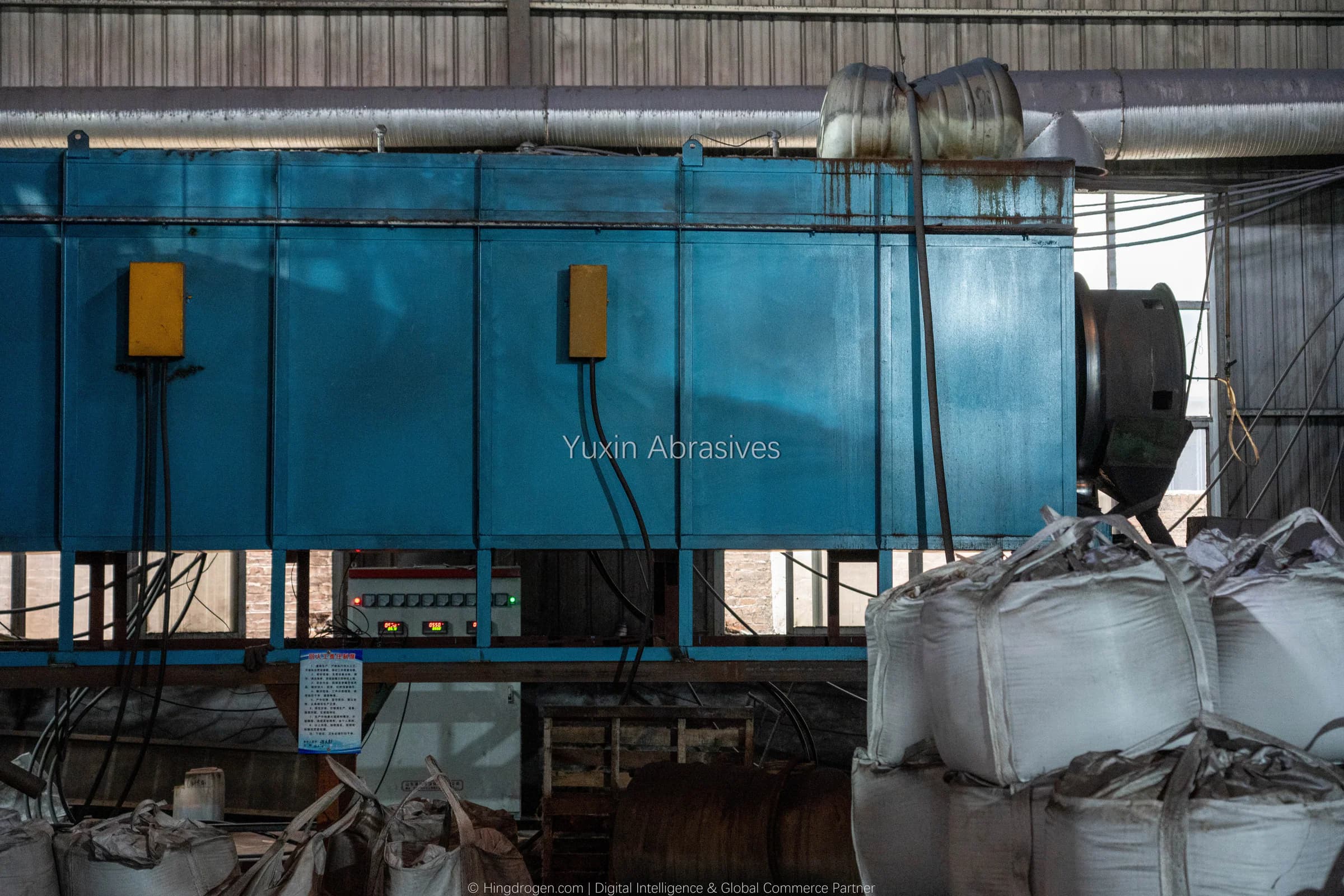

YUXIN production photograph: Quenching, record _DSC9097

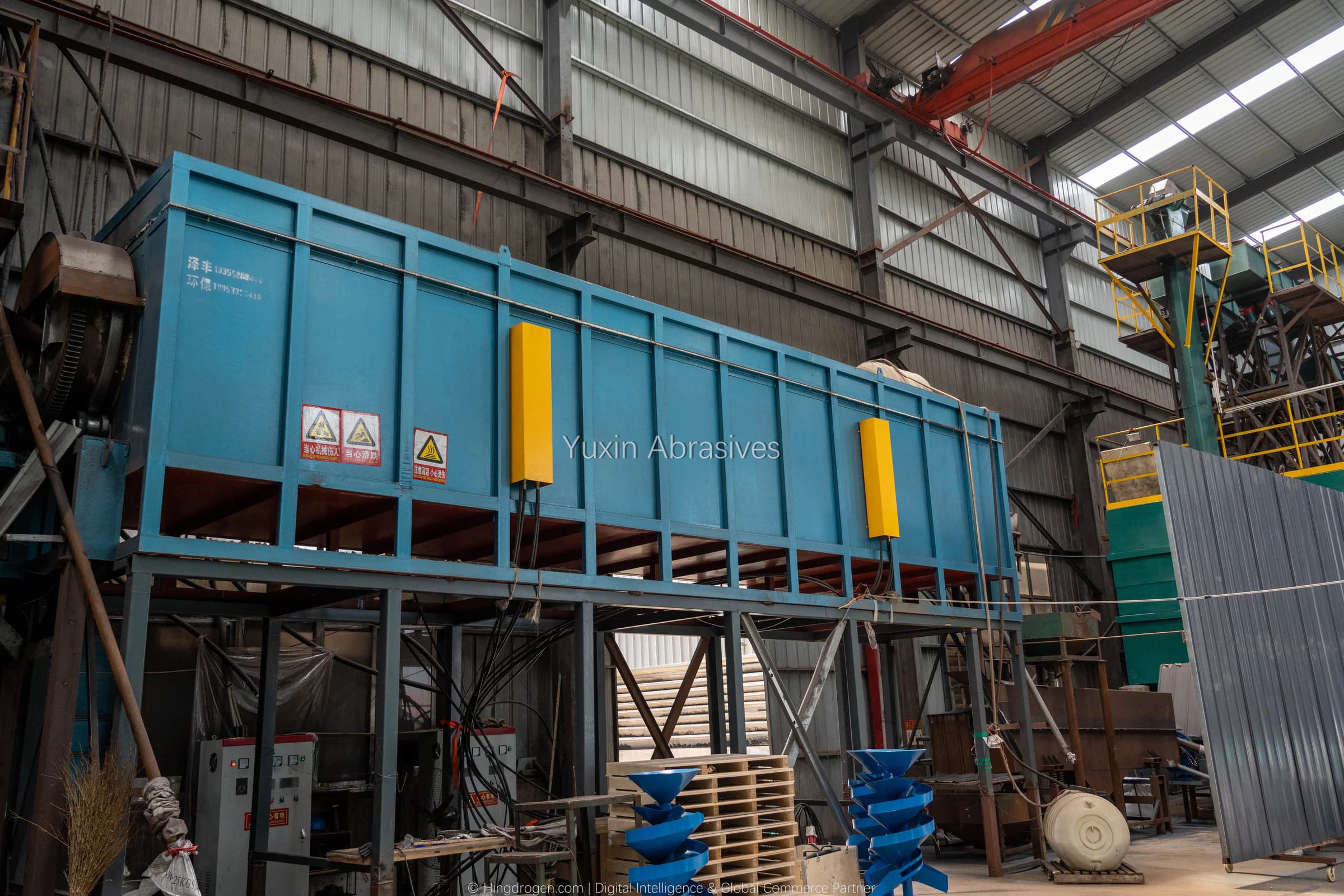

YUXIN production photograph: Quenching, record _DSC9134
08

Steel shot crushing — steel grit production

This chapter records steel shot crushing and steel grit production.

3 site photographs

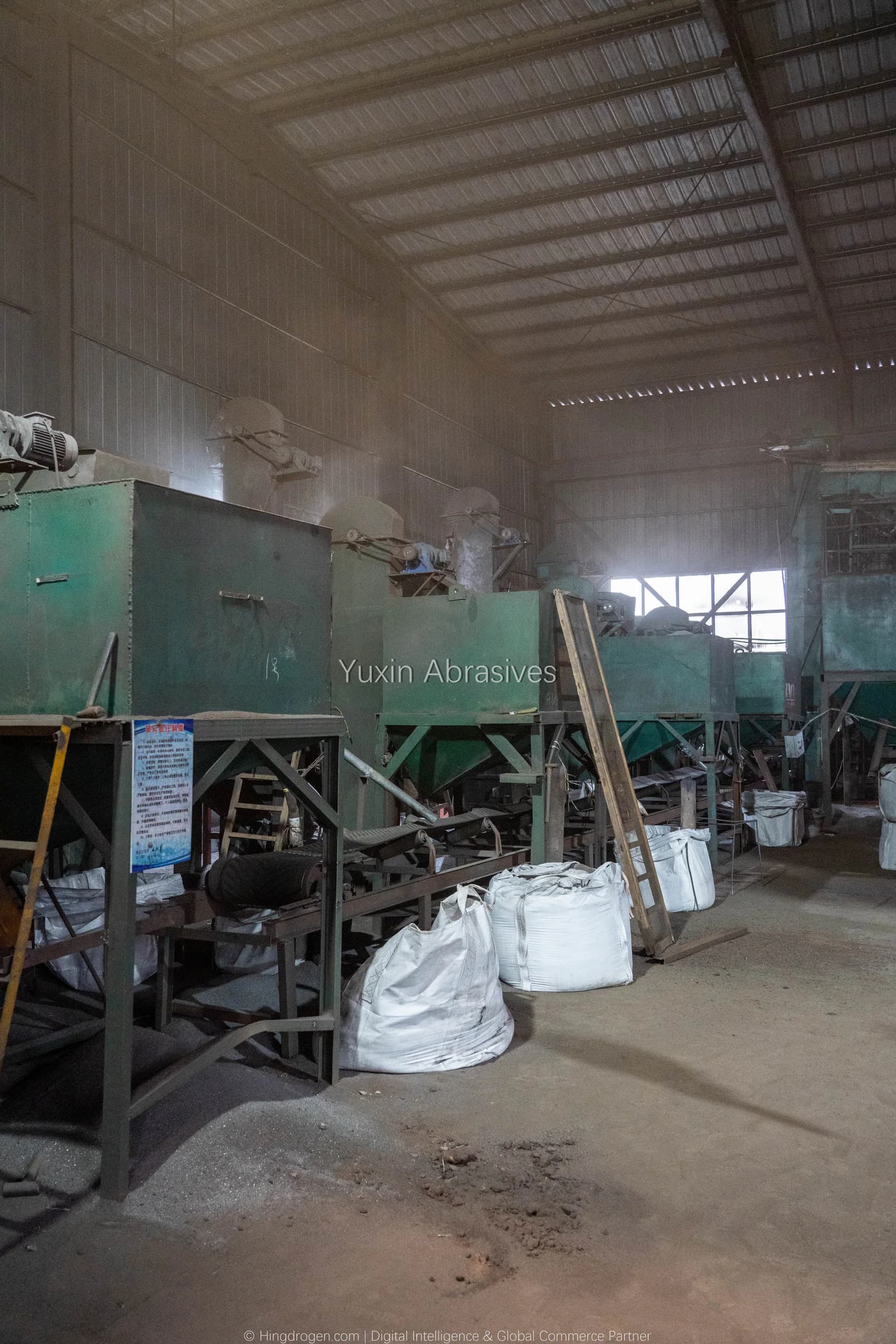

YUXIN production photograph: Steel shot crushing — steel grit production, record _DSC9094
YUXIN production photograph: Steel shot crushing — steel grit production, record _DSC9095

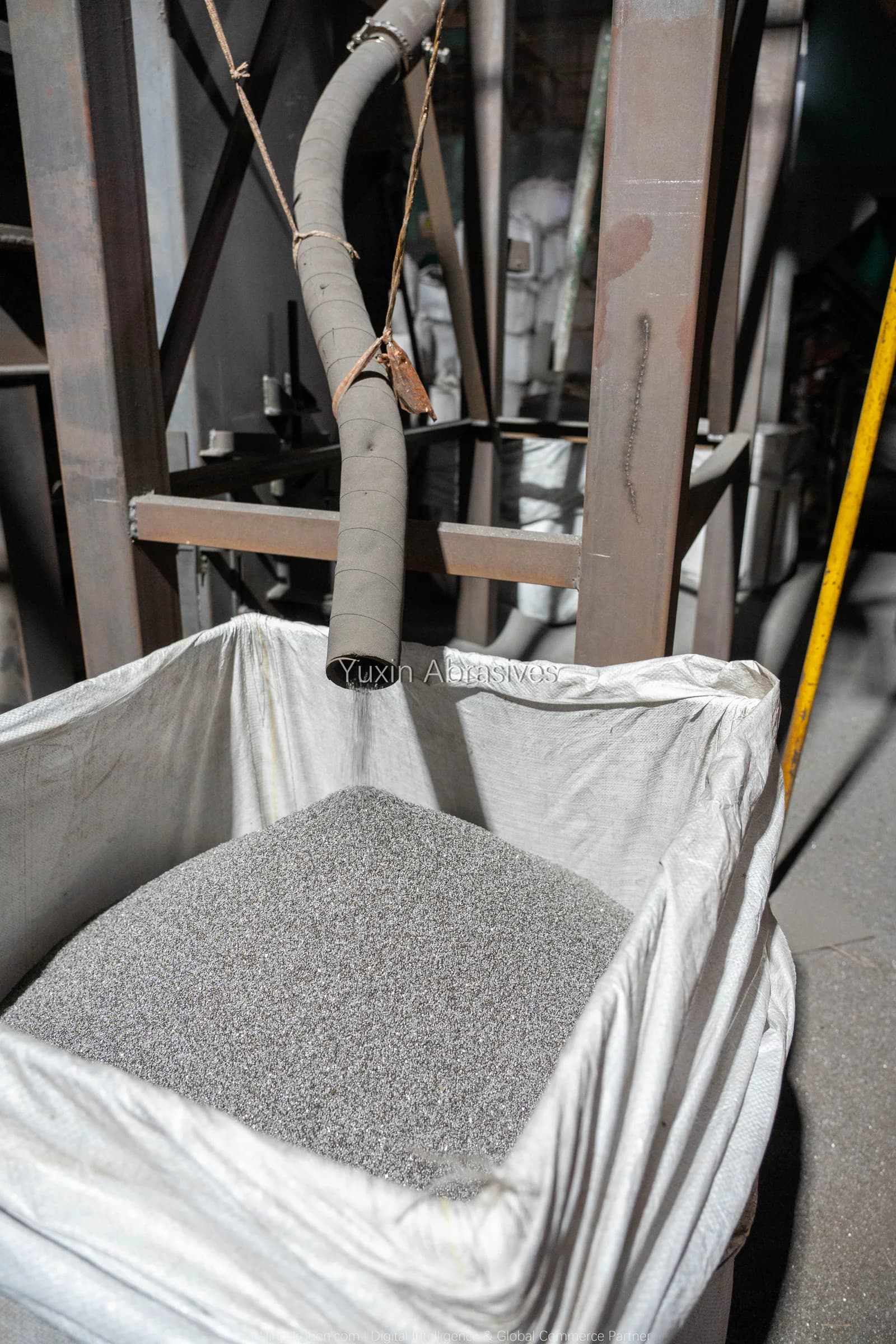

YUXIN production photograph: Steel shot crushing — steel grit production, record _DSC9096
09

Final screening & packaging

Screening outlets and bagged materials are shown at the final screening and packaging stage.

5 site photographs

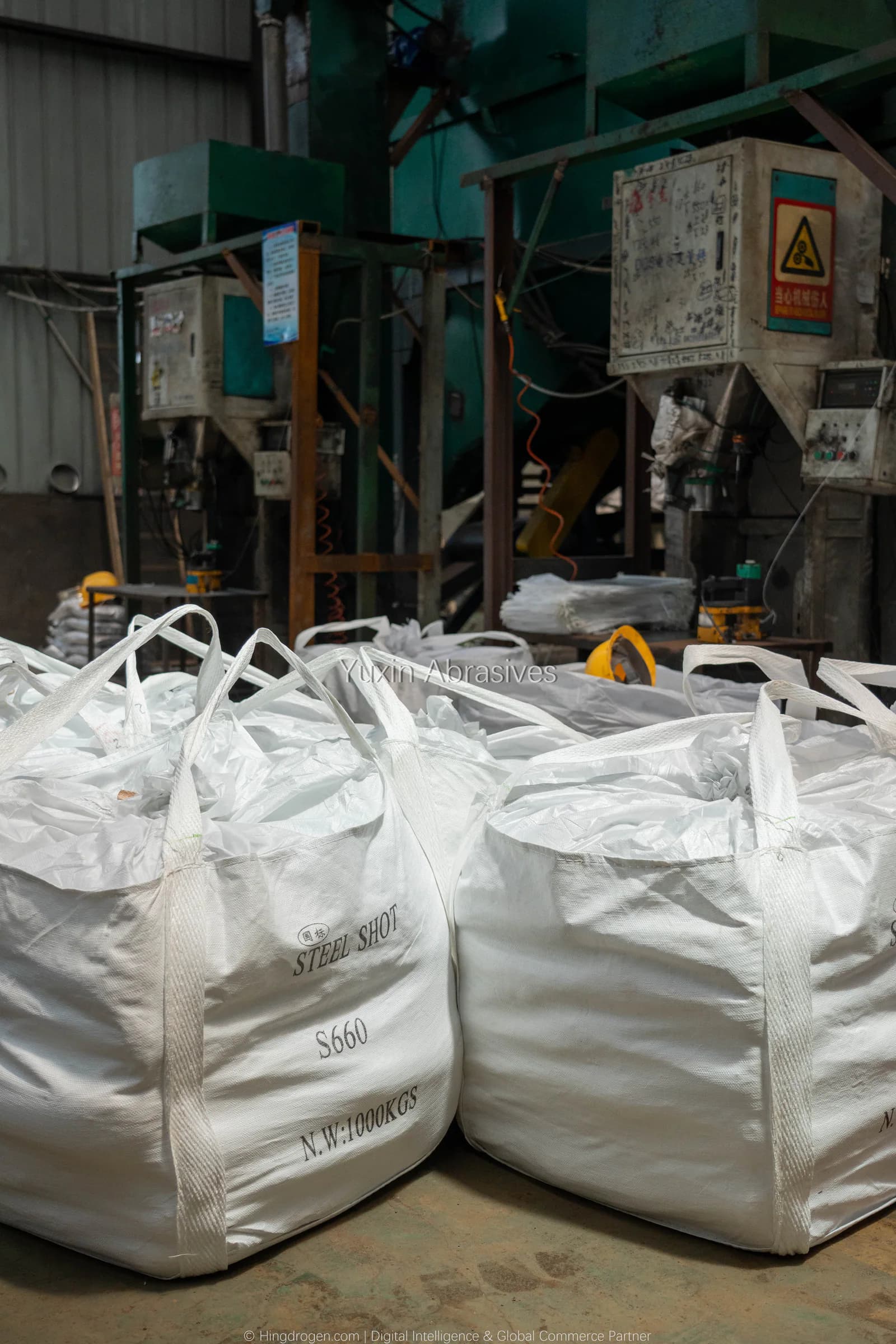

YUXIN production photograph: Final screening & packaging, record _DSC9136

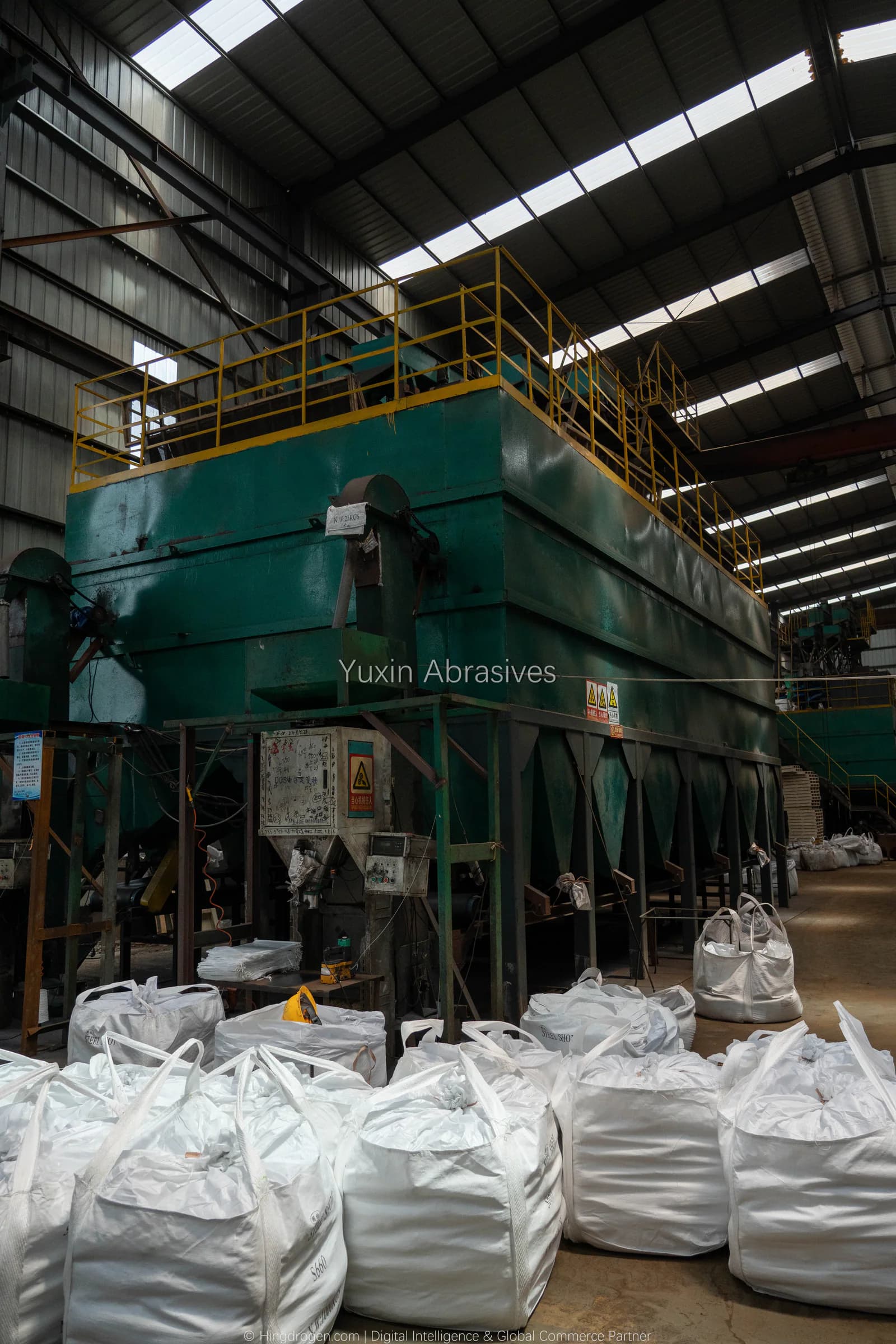

YUXIN production photograph: Final screening & packaging, record _DSC9137

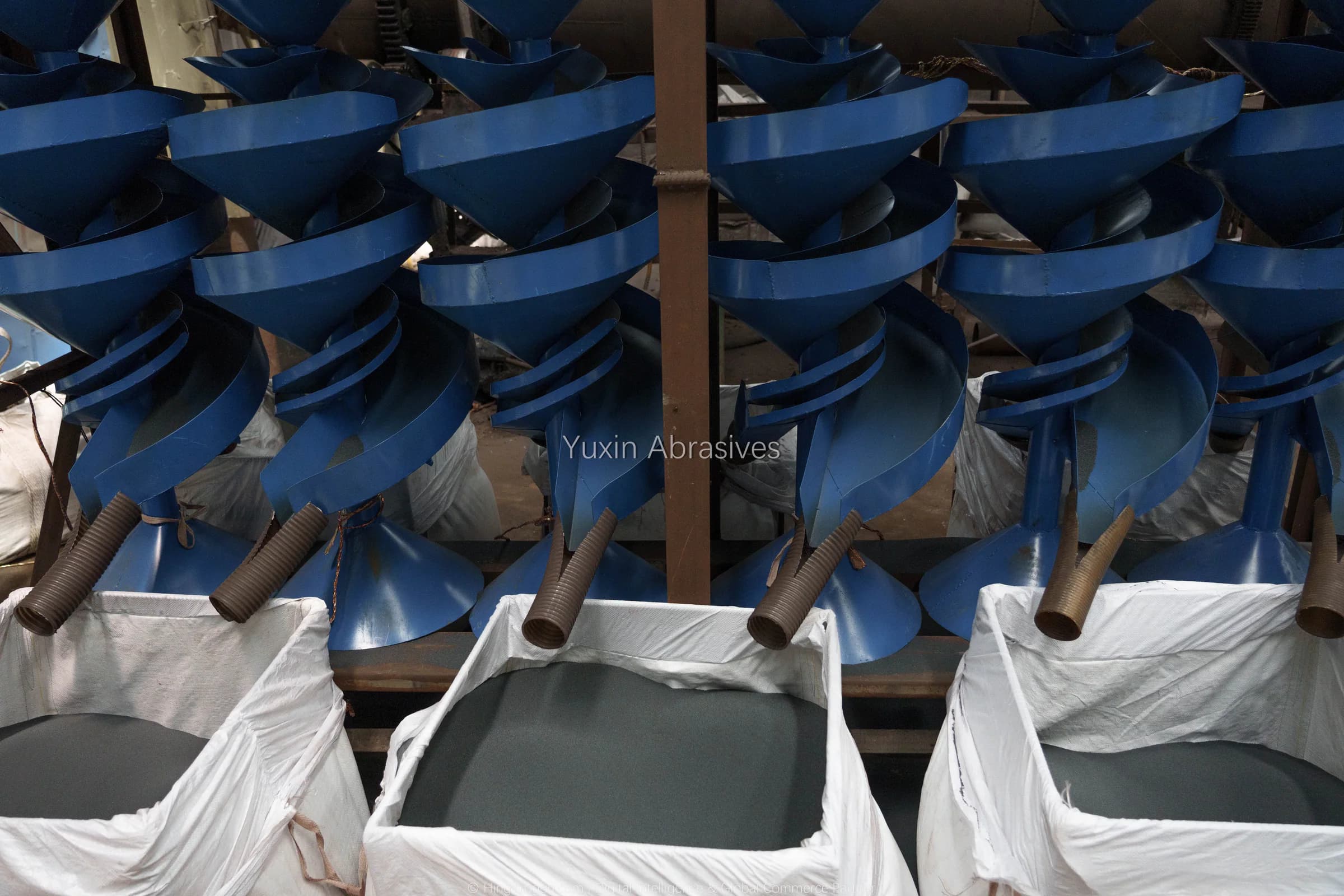

YUXIN production photograph: Final screening & packaging, record _DSC9138

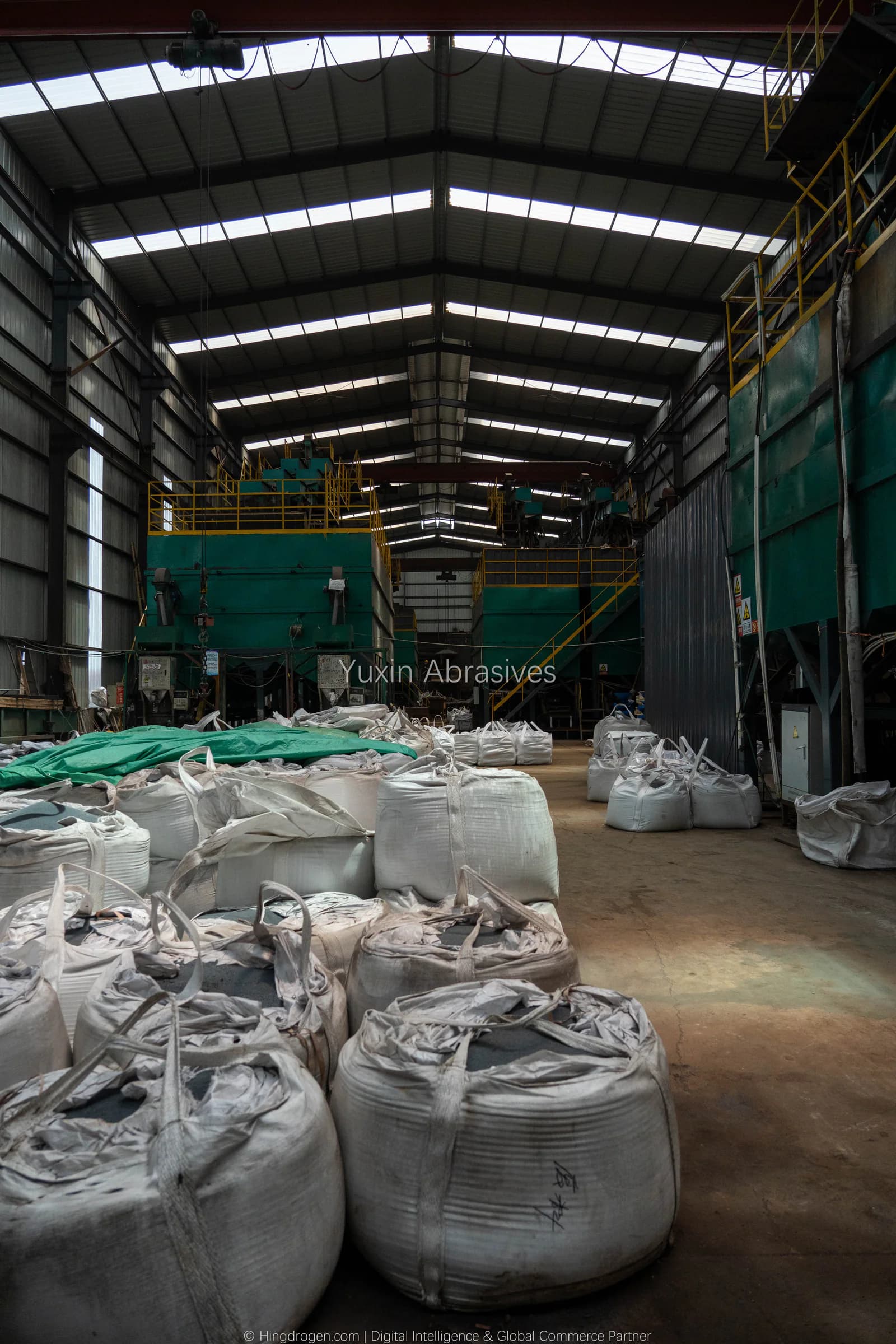

YUXIN production photograph: Final screening & packaging, record _DSC9140

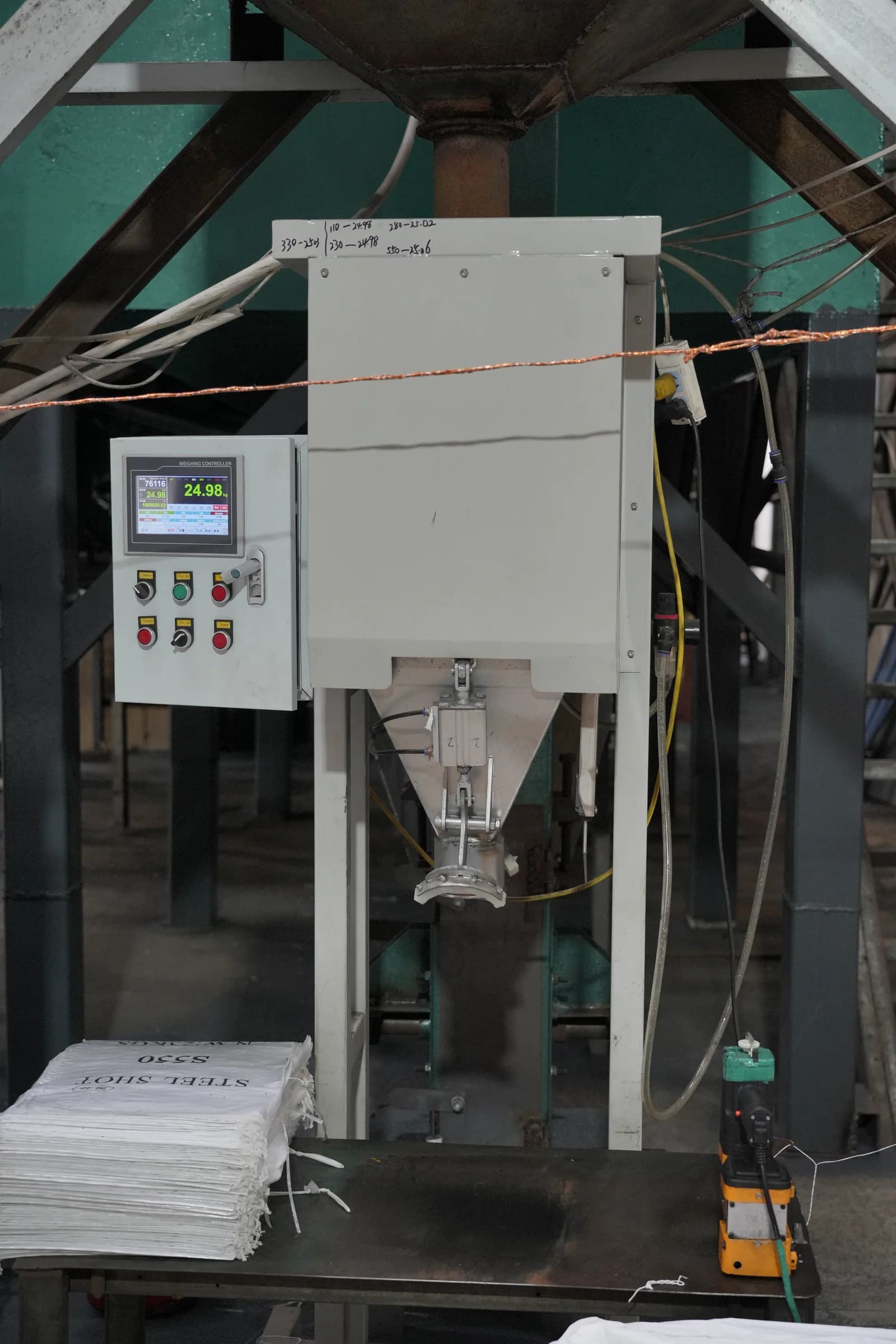

YUXIN production photograph: Final screening & packaging, record _DSC9247
10

Dust collection & auxiliary systems

Hoppers, collection points and connected equipment form the dust collection and auxiliary systems.

6 site photographs

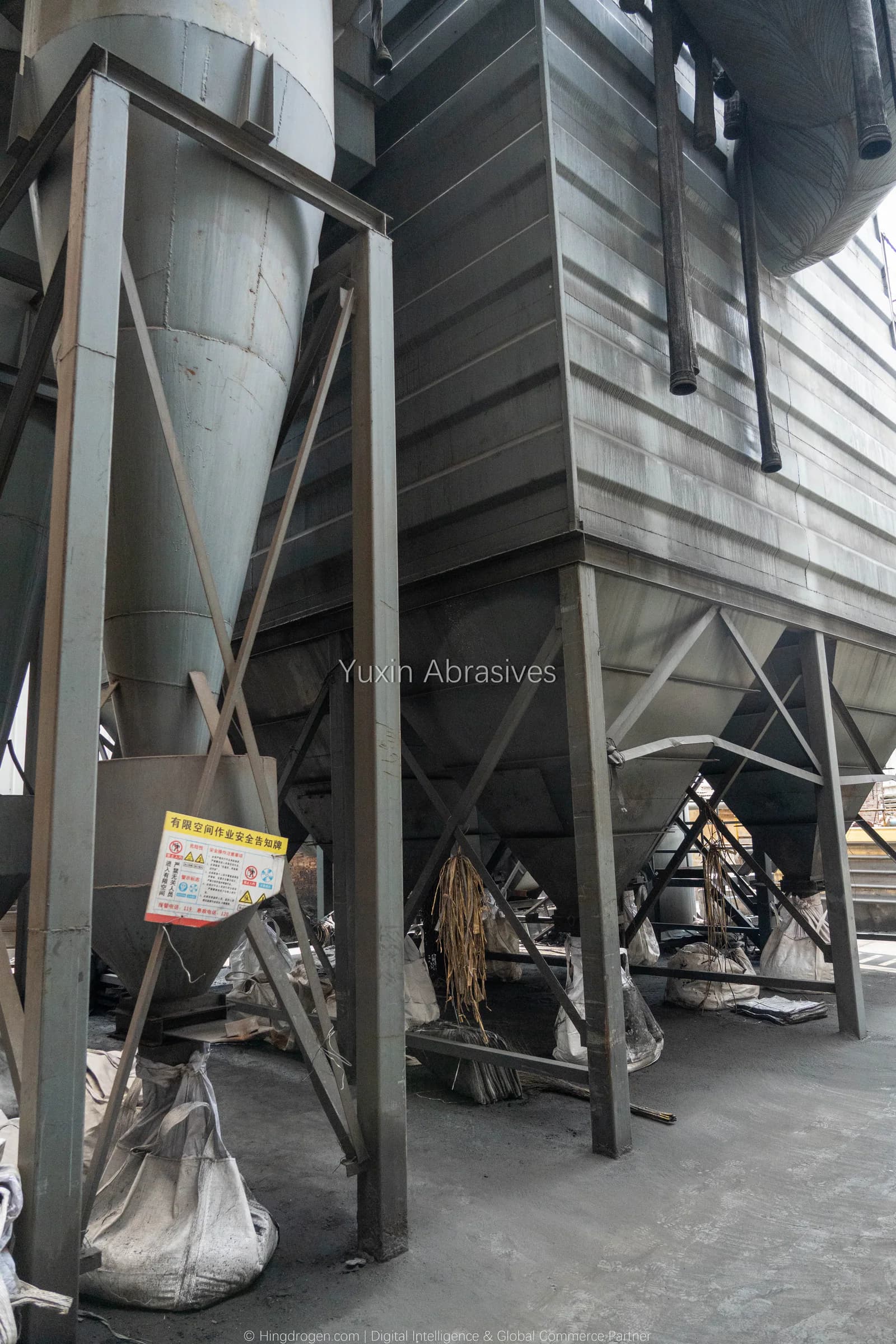

YUXIN production photograph: Dust collection & auxiliary systems, record _DSC9100

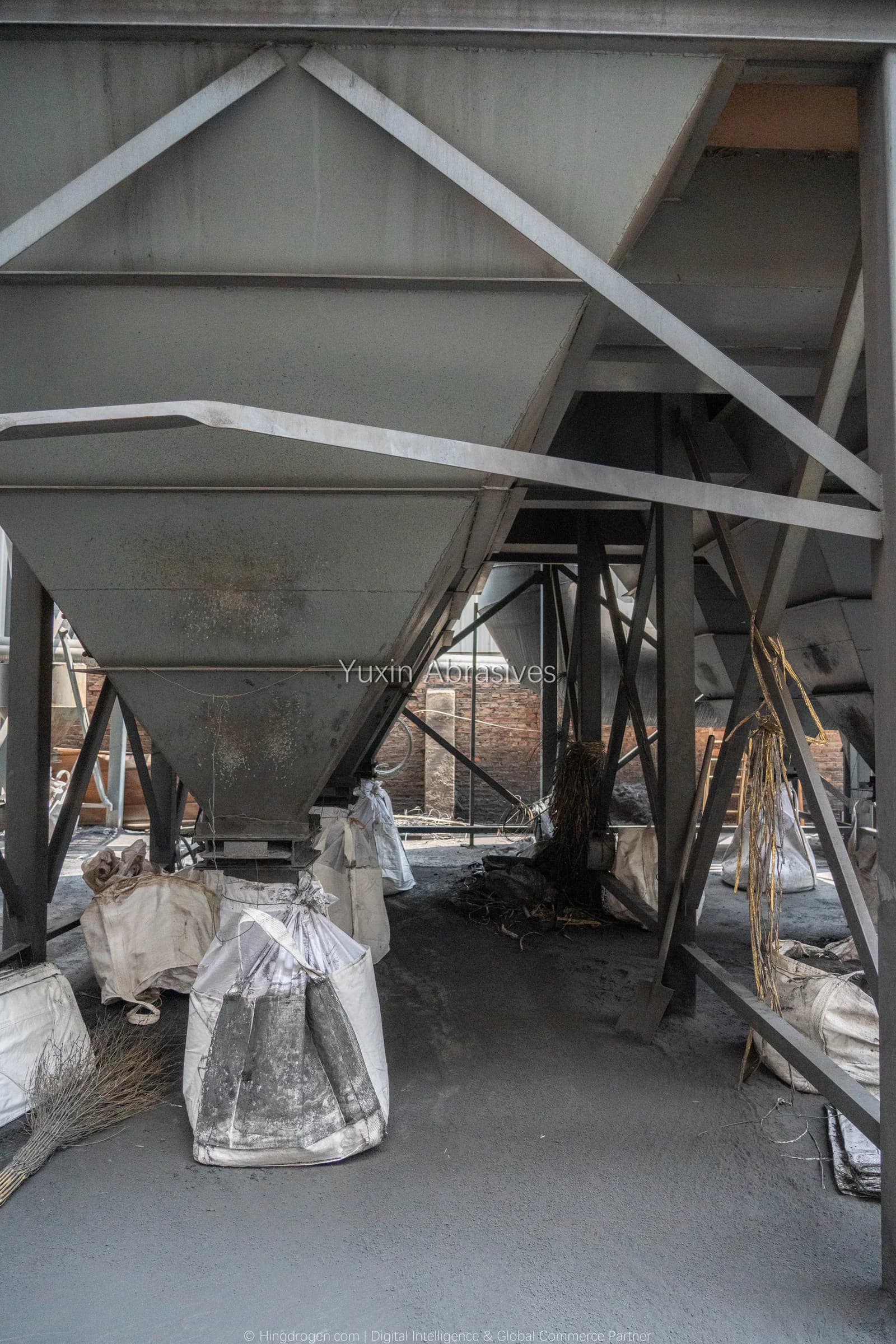

YUXIN production photograph: Dust collection & auxiliary systems, record _DSC9101

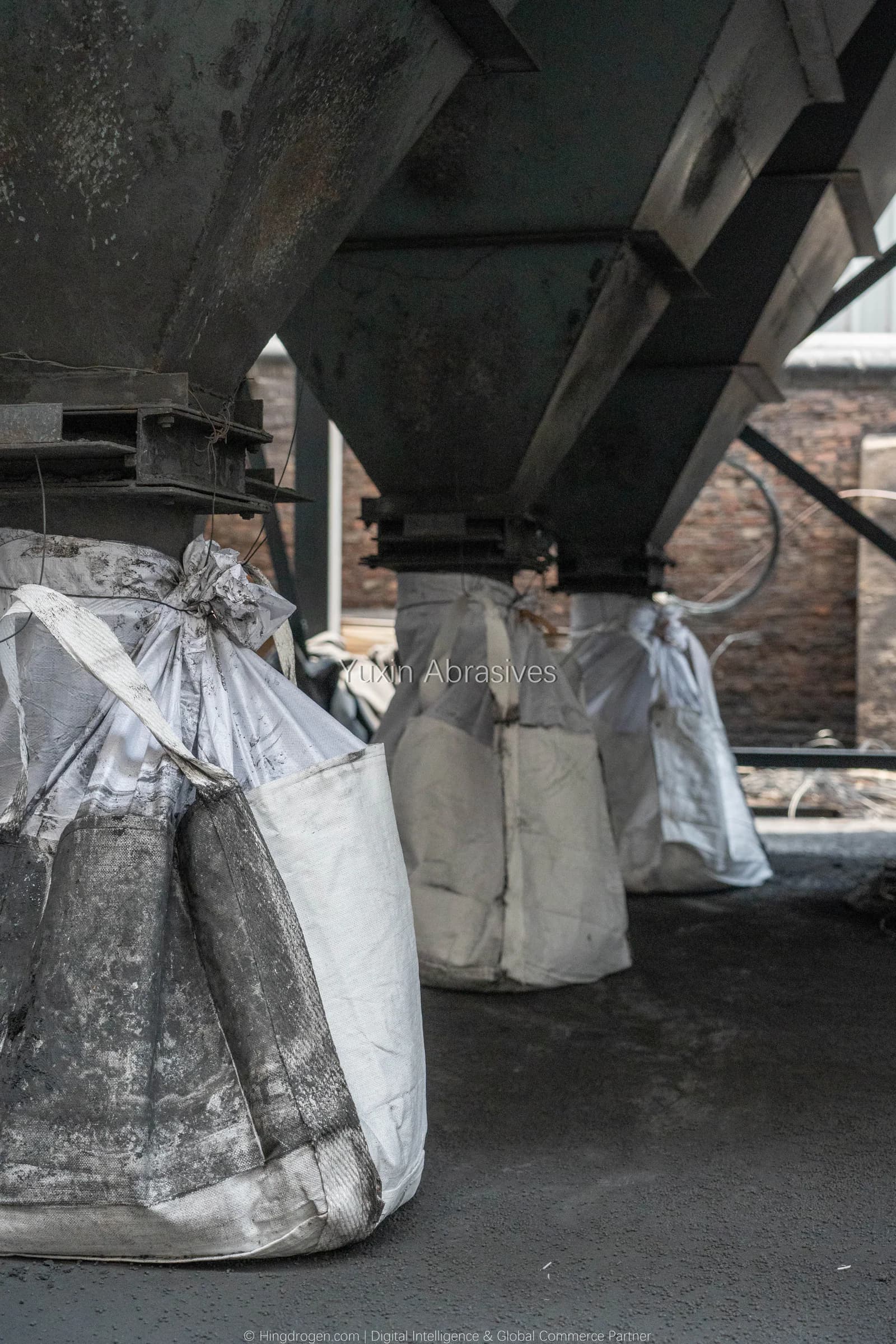

YUXIN production photograph: Dust collection & auxiliary systems, record _DSC9102

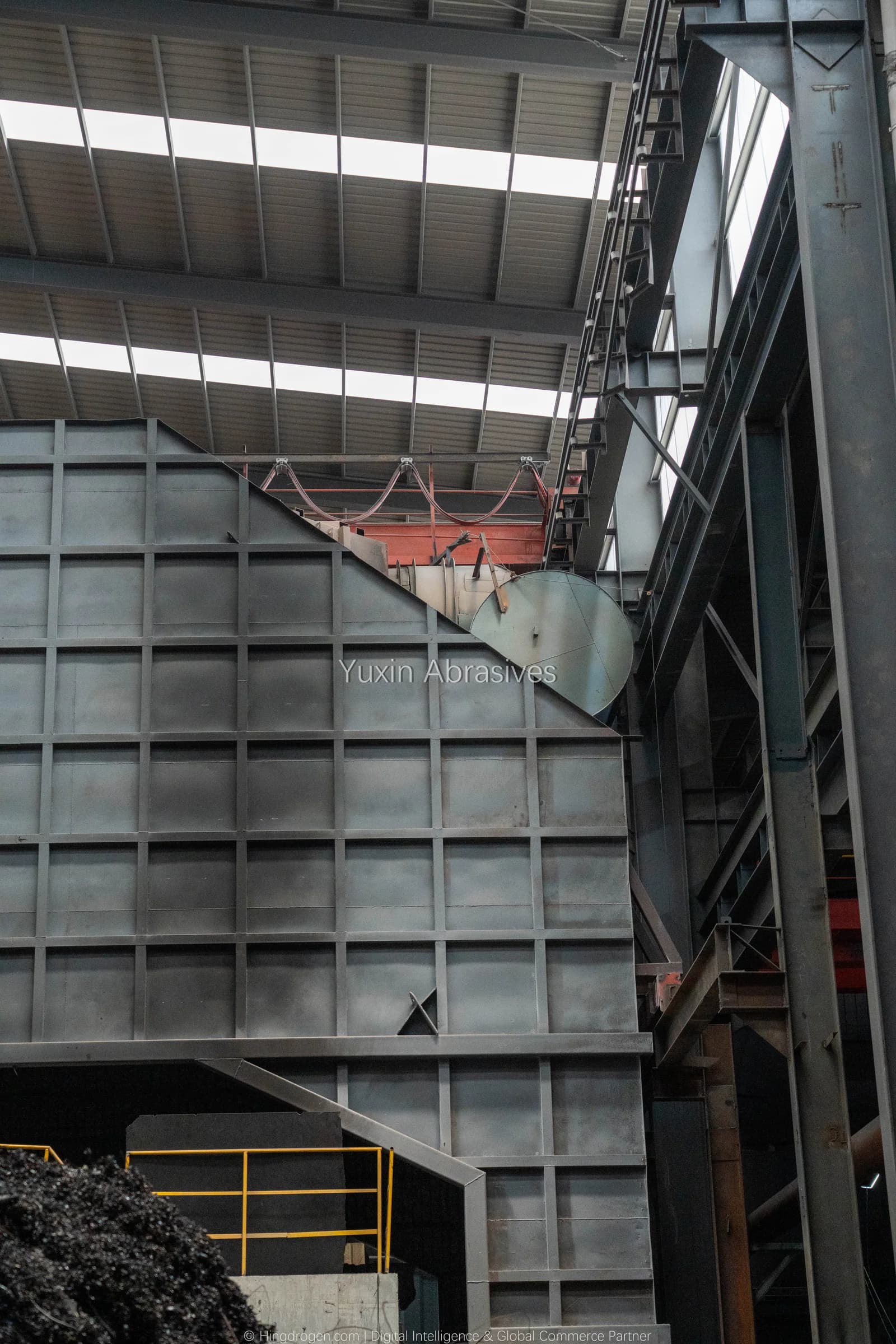

YUXIN production photograph: Dust collection & auxiliary systems, record _DSC9103

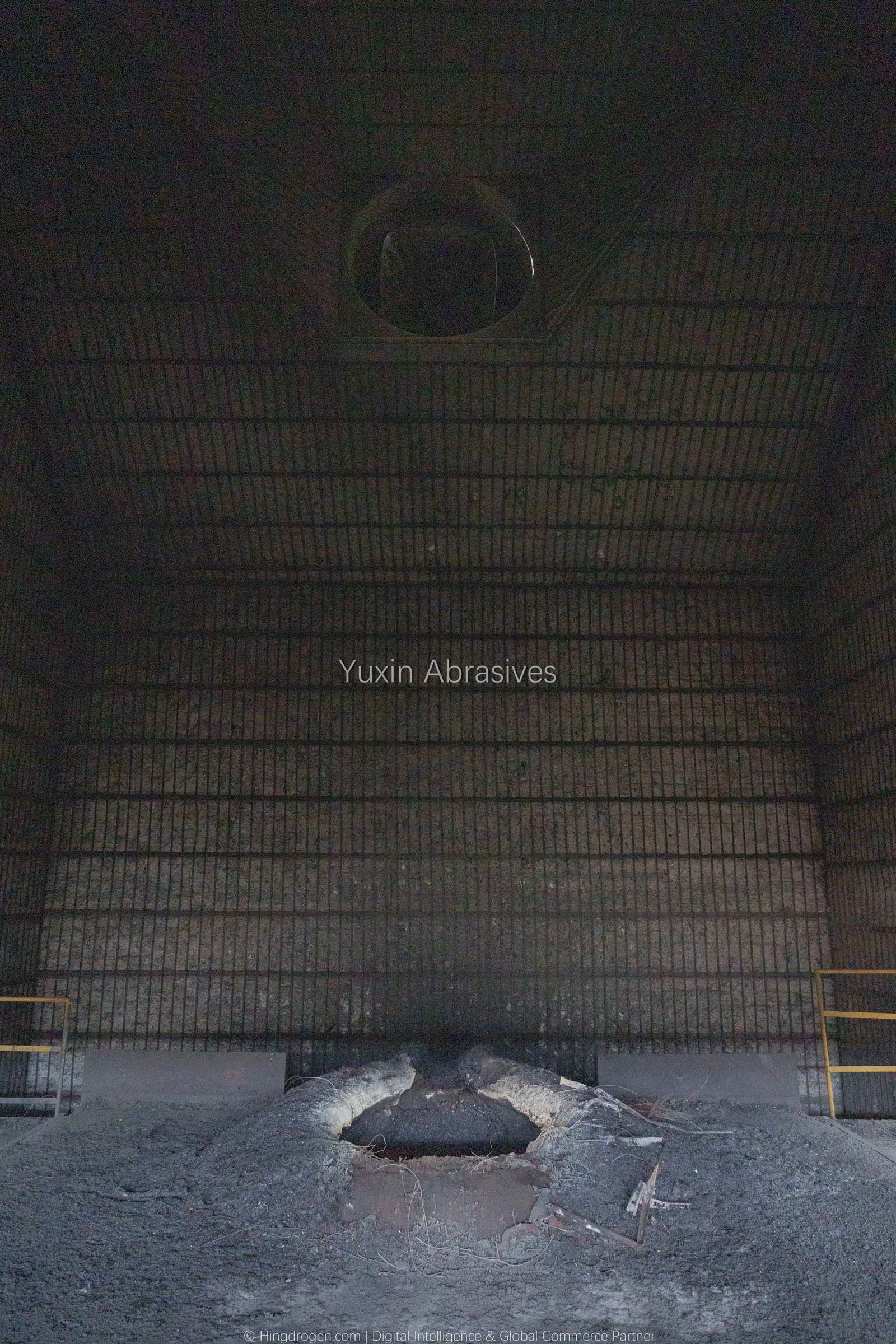

YUXIN production photograph: Dust collection & auxiliary systems, record _DSC9125

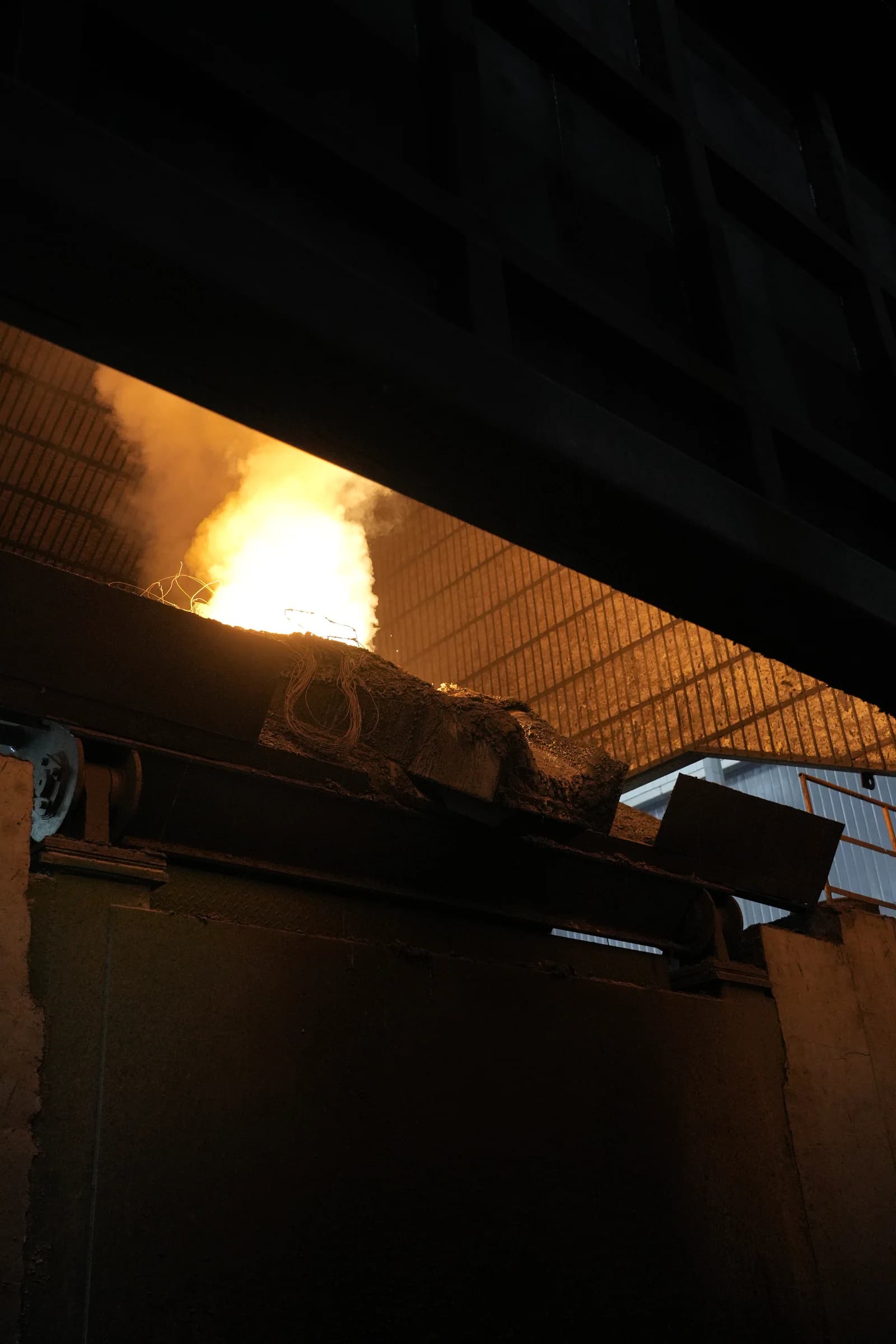

YUXIN production photograph: Dust collection & auxiliary systems, record _DSC9224

Continue to the factory, storage and packaging record

View factory, storage & packaging
